Oil Catch Tank: Removal

CAUTION:
  • Vehicle components are extremely hot immediately after driving. Be wary of receiving burns from heated parts.
  • If the engine oil is spilt over the engine, exhaust pipe or the under cover, completely wipe it off to avoid emission of smoke or causing a fire.
  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the air intake duct. Ref. to INTAKE (INDUCTION) (H4DOTC)>AIR INTAKE DUCT>REMOVAL .

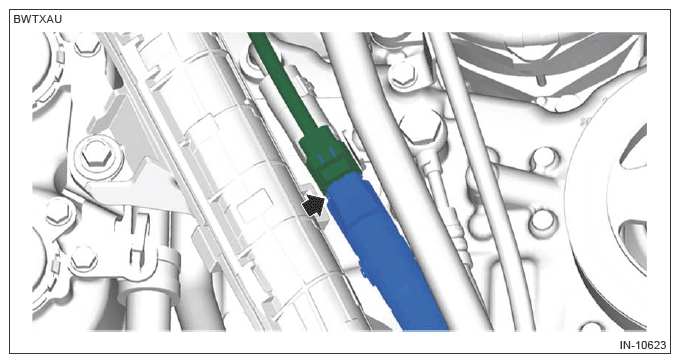

  3. Unlock the blow-by diagnosis connector, and disconnect the PCV hose assembly No. 2 from the PCV hose assembly No. 1.
    G13948740Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the under cover front. Ref. to EXTERIOR/INTERIOR TRIM>FRONT UNDER COVER>REMOVAL .

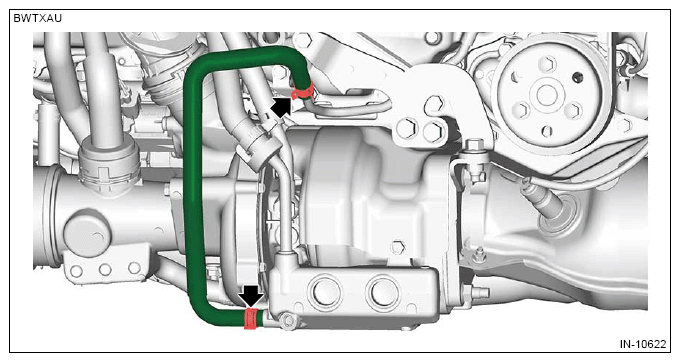

  5. Disconnect the engine oil hose, and drain the engine oil in the oil catch tank.
    NOTE: Prepare the container for draining of engine oil.
    G13948741Courtesy of SUBARU OF AMERICA, INC.

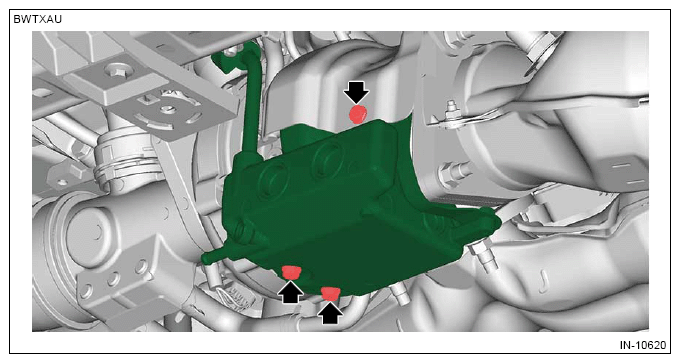

  6. Remove the oil catch tank.
    G13948742Courtesy of SUBARU OF AMERICA, INC.
