Center Exhaust Pipe (Rear)

Set the center exhaust pipe (rear) using a new gasket.

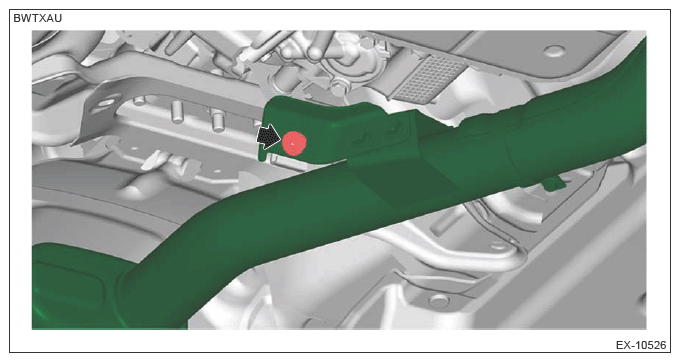

Install the bolts which hold center exhaust pipe (rear) to the hanger bracket.
Tightening torque:

35 N.m (3.6 kgf-m, 25.8 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

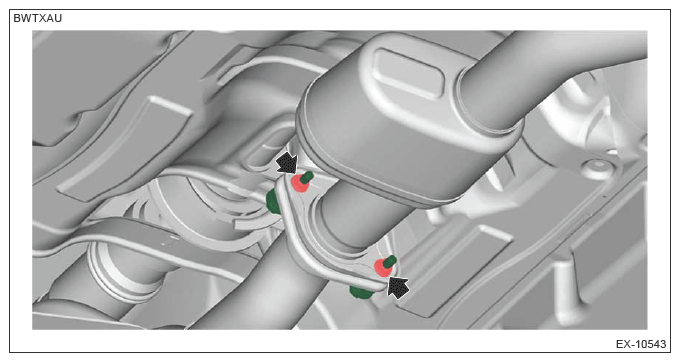

Connect the center exhaust pipe (rear) and the rear exhaust pipe.
Tightening torque:

18 N.m (1.8 kgf-m, 13.3 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

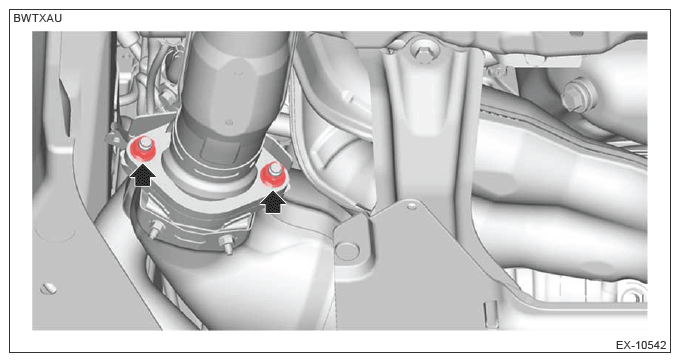

Connect the center exhaust pipe (front) and the center exhaust pipe (rear).
Tightening torque:

42.5 N.m (4.3 kgf-m, 31.3 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
Install the crossmember support rear LH. Ref. to FRONT SUSPENSION>CROSSMEMBER SUPPORT>INSTALLATION .
