Air Cleaner Case: Removal

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the air intake duct. Ref. to INTAKE (INDUCTION) (H4DOTC)>AIR INTAKE DUCT>REMOVAL .

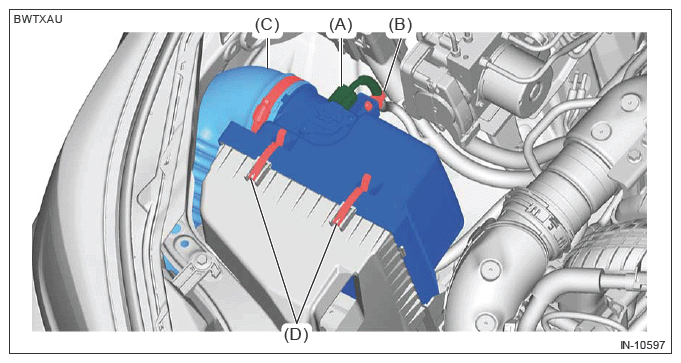

  3. Disconnect the connector (A) from the mass air flow and intake air temperature sensor, and remove the clip (B) securing the harness.
  4. Disconnect the turbo duct (C), disengage the clip (D), and remove the air cleaner case (rear) and air cleaner element.
    G13619973Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the air cleaner case (front).
    NOTE: The protrusion of the air cleaner case (front) is inserted in the cushion of the air cleaner case bracket.
    G13619974Courtesy of SUBARU OF AMERICA, INC.

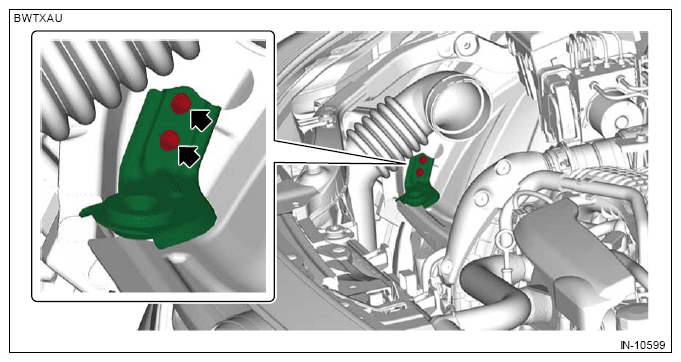

  6. Remove the air cleaner case bracket.
    NOTE: Perform this procedure only when required.
G13619975Courtesy of SUBARU OF AMERICA, INC.
