Rear Gate Garnish: Removal

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the trim panel assembly rear gate LWR. Ref. to EXTERIOR/INTERIOR TRIM>REAR GATE TRIM>REMOVAL .
  3. Remove the power rear gate touch sensor. (Model with power rear gate) Ref. to POWER REAR GATE SYSTEM>POWER REAR GATE TOUCH SENSOR>REMOVAL .
  4. Remove the cover rear gate. (Model without power rear gate)
    G13953650Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the garnish assembly rear gate.

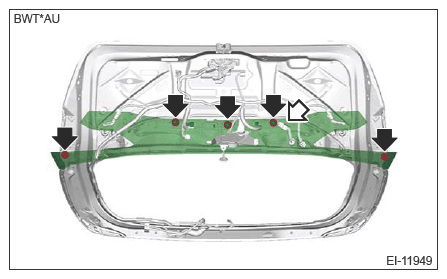

    1. Disconnect the opener switch connector.
    2. Remove the bolts and nuts.
      G13953651Courtesy of SUBARU OF AMERICA, INC.

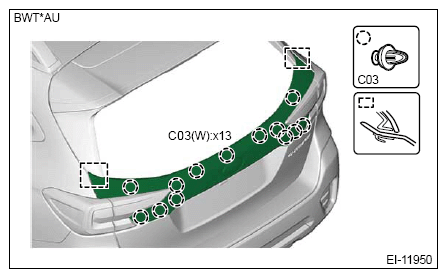

    3. Remove the clips and remove the garnish assembly rear gate.
      CAUTION: Attach protective tape to both ends of the garnish assembly rear gate. This may cause interference.
      NOTE: After all clips are released, remove the garnish assembly rear gate while both ends are flexed to some extent.
      G13953652Courtesy of SUBARU OF AMERICA, INC.
