Rear Sealing Cover

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the trim panel rear door. Ref. to EXTERIOR/INTERIOR TRIM>DOOR TRIM>REMOVAL>REAR DOOR .
  3. Remove the sealing cover door rear.
    CAUTION:
    • Carefully remove the butyl tape. Excessive force will easily break the cover.
    • Be careful not to allow the butyl tape to contact any trims and seats because the butyl tape, which has a strong adhesive force, is difficult to remove once it adhered.
    • If the sealing cover gets broken, replace it with a new part.

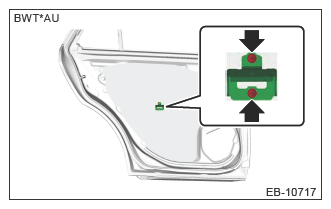

    1. Remove the screw to remove the bracket door rear.
      G13953847Courtesy of SUBARU OF AMERICA, INC.
    2. Disconnect connectors.

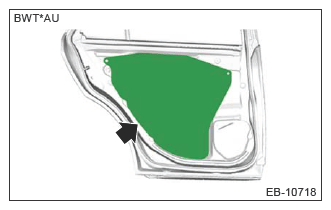

    3. Carefully remove the butyl tape to remove the sealing cover door rear.
    G13953848Courtesy of SUBARU OF AMERICA, INC.
