Glove Box Lid

NOTE: Refer to "Security and Locks" article for key cylinder replacement. Ref. to SECURITY AND LOCKS>KEY LOCK CYLINDERS>REPLACEMENT>GLOVE BOX LID .
  1. Remove the pocket COMPL.
    1. Remove the damper assembly.
    2. Release the stoppers and remove the pocket COMPL by pulling it toward you.

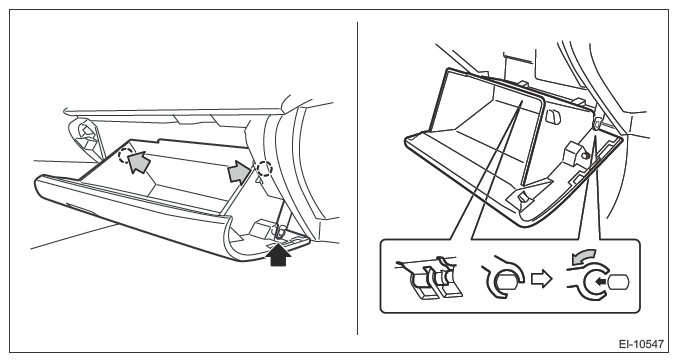

G13953684Courtesy of SUBARU OF AMERICA, INC.
