Mud Guard: Removal

  1. Lift up the vehicle.
  2. Remove the wheels. Ref. to WHEEL AND TIRE SYSTEM>TIRE AND WHEEL>REMOVAL .
  3. Remove the under cover front. Ref. to EXTERIOR/INTERIOR TRIM>FRONT UNDER COVER>REMOVAL .
  4. Remove the garnish assembly side sill. (When the plate air flap rear is removed) Ref. to EXTERIOR/INTERIOR TRIM>SIDE GARNISH AND SIDE SPOILER>REMOVAL .
  5. Remove the clips, then remove the mud guard.
    NOTE: Remove the plate air flap as required.

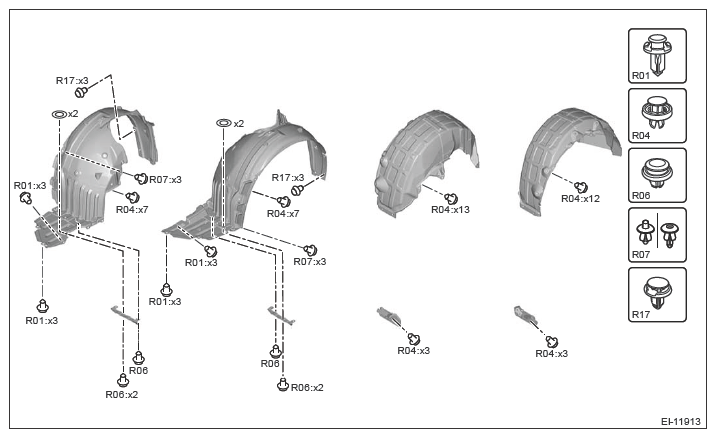

    • Sedan model
      G13625874Courtesy of SUBARU OF AMERICA, INC.
    • OUTBACK model
    G13953587Courtesy of SUBARU OF AMERICA, INC.
