Engine Intake System (Induction) And Turbocharger (2.4L): Intercooler: Installation

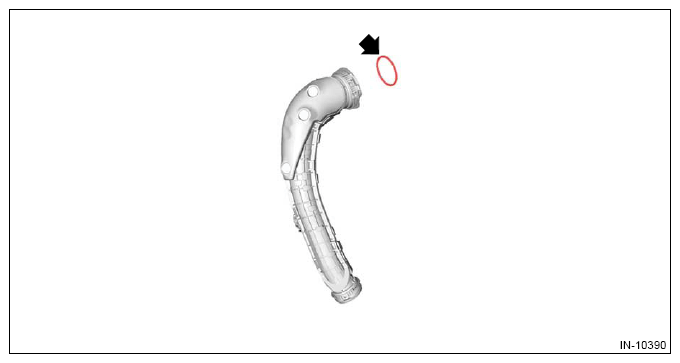

Replace the intake duct No. 2 gasket with a new part.

Courtesy of SUBARU OF AMERICA, INC.

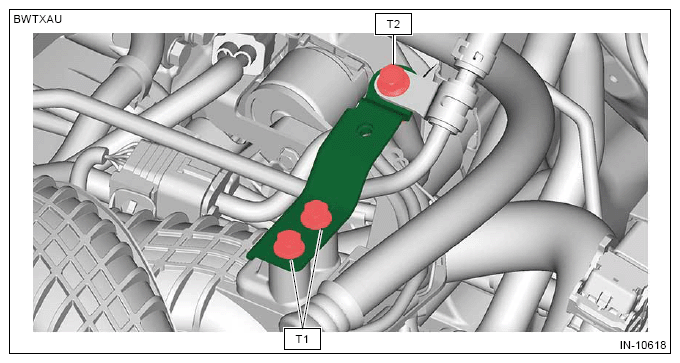

Install the intercooler stay LH to the intake manifold assembly and install the vacuum pipe assembly stay to the intercooler stay LH.
Tightening torque:

T1: 16 N.m (1.6 kgf-m, 11.8 ft-lb)

T2: 18 N.m (1.8 kgf-m, 13.3 ft-lb)

Fig 1: Intercooler Stay LH To Intake Manifold Assembly Bolts (With Torque Specification)
Courtesy of SUBARU OF AMERICA, INC.

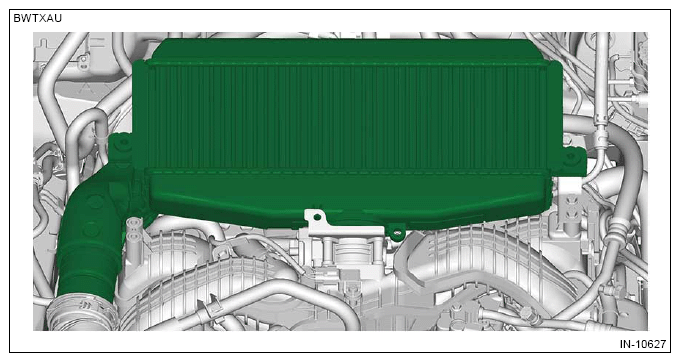

Using a new gasket, set the intercooler and the intake duct No. 3 as a unit.

Courtesy of SUBARU OF AMERICA, INC.

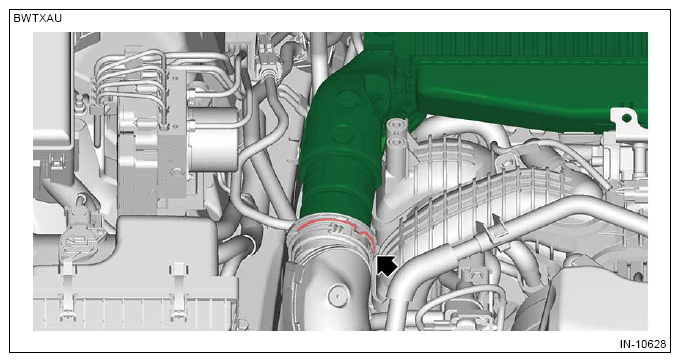

Connect the intake duct No. 3 to the intake duct No. 2 and lock it.
CAUTION:
- Make sure there are no damage or dust on connections. If necessary, clean the seal surface of the pipe.
- Confirm that the connections are secure.
NOTE: It is possible to install with the spring locked.

Courtesy of SUBARU OF AMERICA, INC.

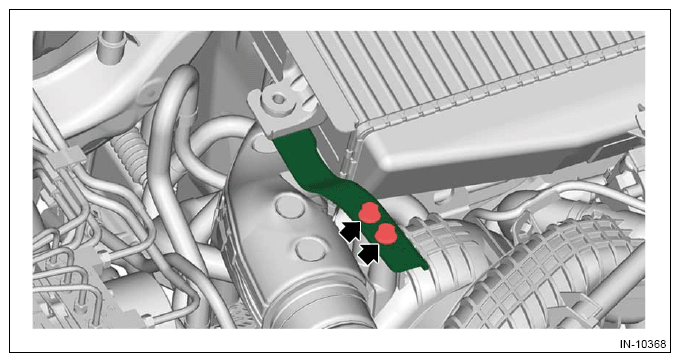

Install the intercooler stay RH to the intake manifold assembly.
Tightening torque:

16 N.m (1.6 kgf-m, 11.8 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

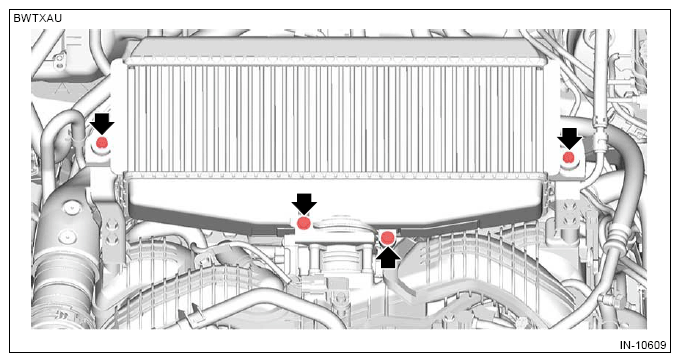

Install the bolts that secure the intercooler to the throttle body stay, intercooler stay RH and the intercooler stay LH.
Tightening torque:

16 N.m (1.6 kgf-m, 11.8 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
