Engine Intake System (Induction) And Turbocharger (2.4L): Intercooler: Disassembly

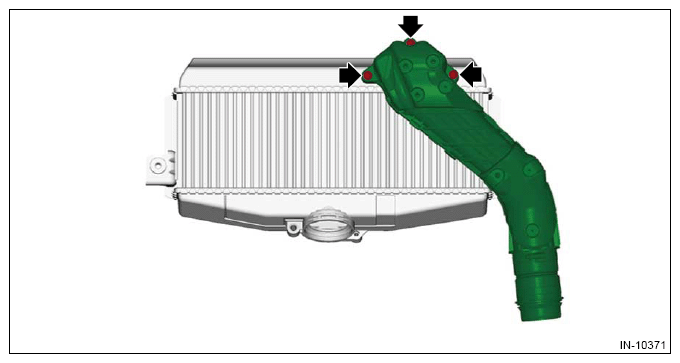

Remove the intake duct No. 3.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
