Intake Duct No. 2

  1. Remove the air intake duct. Ref. to INTAKE (INDUCTION) (H4DOTC)>AIR INTAKE DUCT>REMOVAL
  2. Remove the under cover front. Ref. to EXTERIOR/INTERIOR TRIM>FRONT UNDER COVER>REMOVAL
  3. Remove the bolt and release the spring lock to remove the intake duct No. 2.
    NOTE: Move both ends of the spring to the cutouts of the intake duct No. 2 using a flat tip screwdriver wrapped with protection tape.

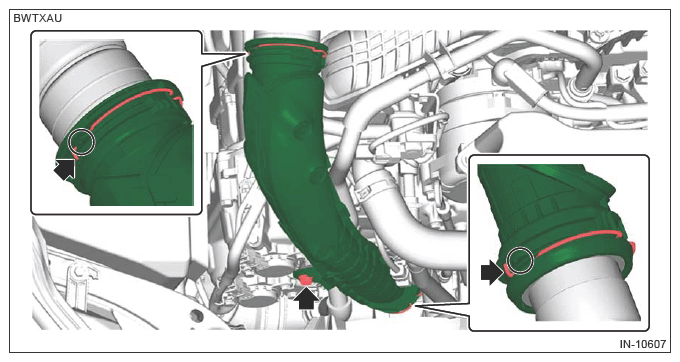

    G13948714Courtesy of SUBARU OF AMERICA, INC.
