Intake Duct No. 2

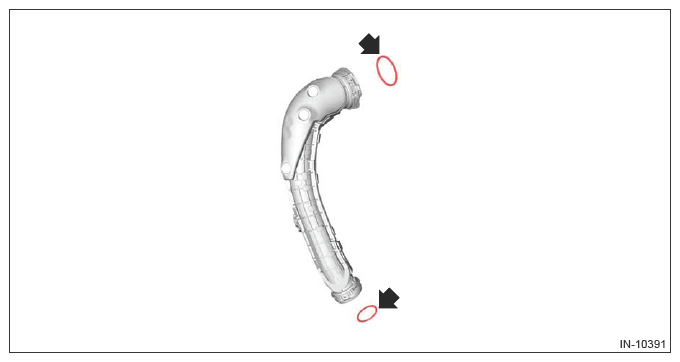

Replace the intake duct No. 2 gasket with a new part.

Courtesy of SUBARU OF AMERICA, INC.

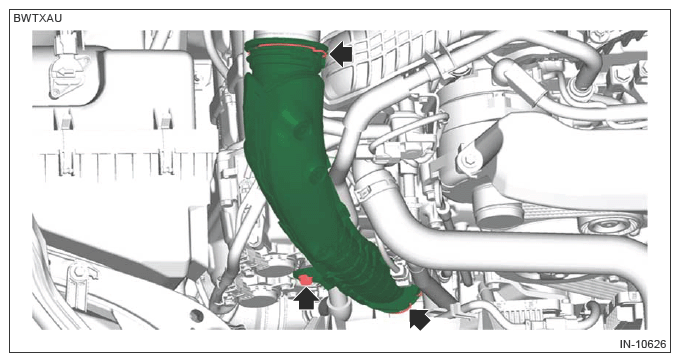

Connect the intake duct No. 2 and lock it.
CAUTION:
- Make sure there are no damage or dust on connections. If necessary, clean the seal surface of the pipe.
- Confirm that the connections are secure.
NOTE: It is possible to install with the spring locked.
Install the bolt.
Tightening torque:

16 N.m (1.6 kgf-m, 11.8 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
Install the under cover front. Ref. to EXTERIOR/INTERIOR TRIM>FRONT UNDER COVER>INSTALLATION .
Install the air intake duct. Ref. to INTAKE (INDUCTION) (H4DOTC)>AIR INTAKE DUCT>INSTALLATION .
