Air Cleaner Element: Removal

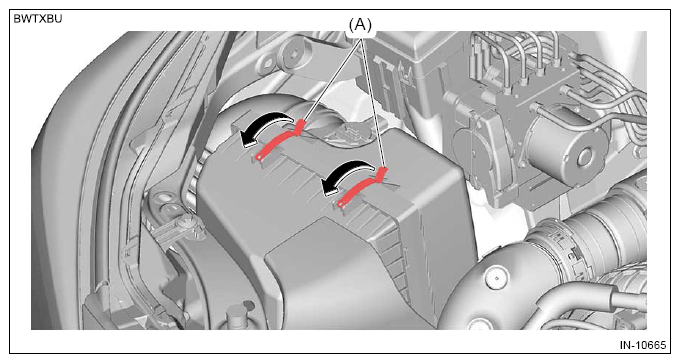

  1. Release the clip (A) lock.
    G13948689Courtesy of SUBARU OF AMERICA, INC.
  2. Lift the air cleaner case (rear), and disengage the claws of the air cleaner case (rear) from the holes on the air cleaner case (front).
    G13948690Courtesy of SUBARU OF AMERICA, INC.

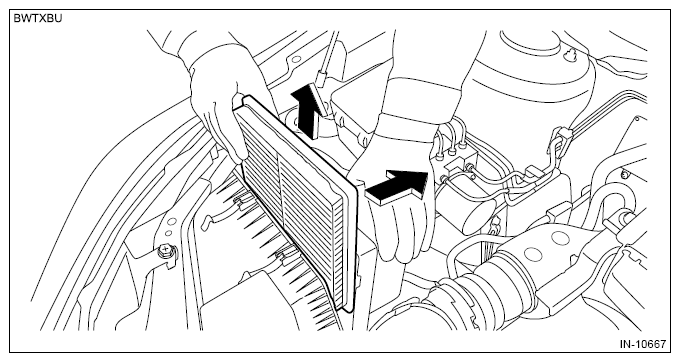

  3. Remove the air cleaner element while pulling the air cleaner case (rear) as shown in the figure.
    G13948691Courtesy of SUBARU OF AMERICA, INC.
