Bumper Beam

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the bumper face front.

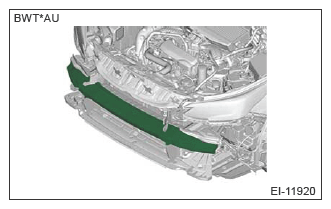

  3. Remove the energy absorber foam front.
    G13953598Courtesy of SUBARU OF AMERICA, INC.

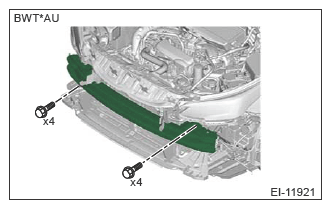

  4. Remove the bolts, and remove the beam COMPL front.
G13953599Courtesy of SUBARU OF AMERICA, INC.
