Related Lines, More Than 52 Ω And Less Than 62 Ω (Body Can_Body Integrated Unit)

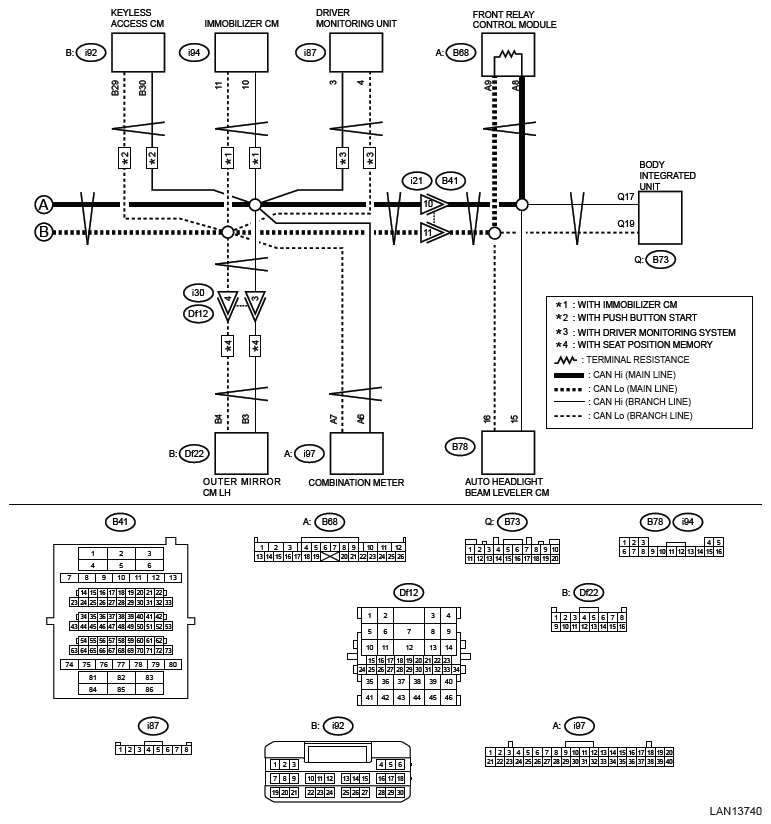

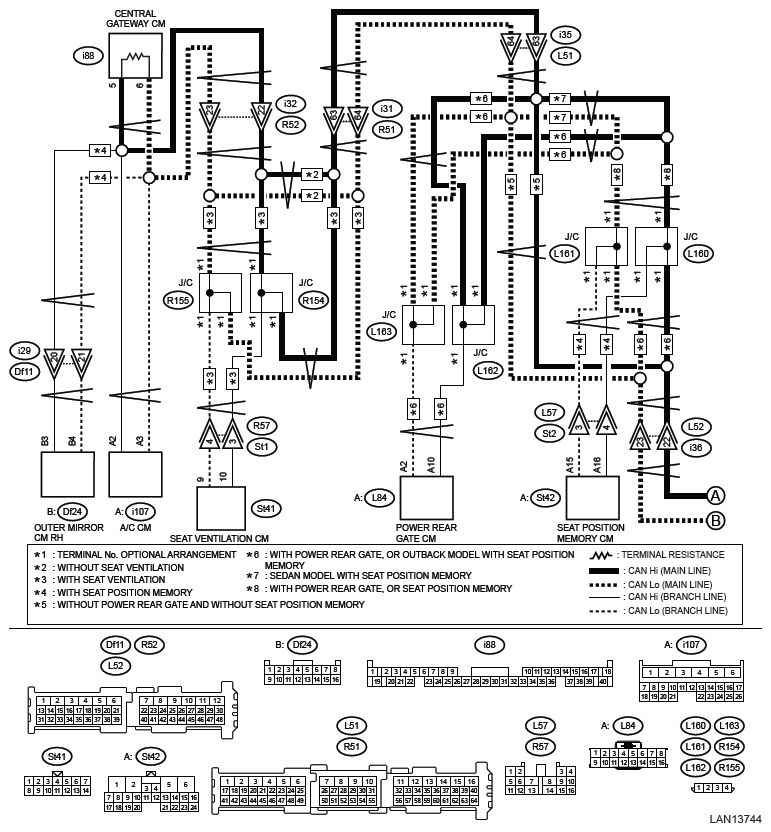

Wiring diagram:

CAN communication system Ref. to WIRING SYSTEM>CAN COMMUNICATION SYSTEM>WIRING DIAGRAM .

Courtesy of SUBARU OF AMERICA, INC.

Courtesy of SUBARU OF AMERICA, INC.

1. CHECK BETWEEN RELATED LINES AND MAIN WIRING HARNESS  .
   1. Disconnect the body integrated unit connector.
   2. Measure the resistance between body integrated unit connector terminals using tester.

      Connector and terminal

      (B73) No. 17 - (B73) No. 19:

      Is the resistance 400 Ω or more?

      Yes  : Related lines between body integrated unit and main wiring harness is open, or main wiring harness is open at two places or more.

      No  : Go to  2 .

2. CHECK RELATED LINES  .

   Using a tester, measure the resistance between body integrated unit connector and central gateway control module connector.

   Connector and terminal

   (B73) No. 17 - (i88) No. 5:

   (B73) No. 19 - (i88) No. 6:

   Is the resistance 10 Ω or more?

   Yes  : Repair or replace the open circuit of body integrated unit related lines.

   No  : Check DTC of body integrated unit. Ref. to BODY CONTROL (DIAGNOSTICS)>DIAGNOSTIC TROUBLE CODE (DTC) .
