Subaru
>>
2021
>>
Legacy Limited XT
>>
Repair and Diagnosis
>>
Electrical
>>
Wiring Diagrams
>>
OEM Wiring Diagrams W/ Connector End Views & Fuse/Relay Locations
>>
Combination Meter System
>>
Wiring Diagram

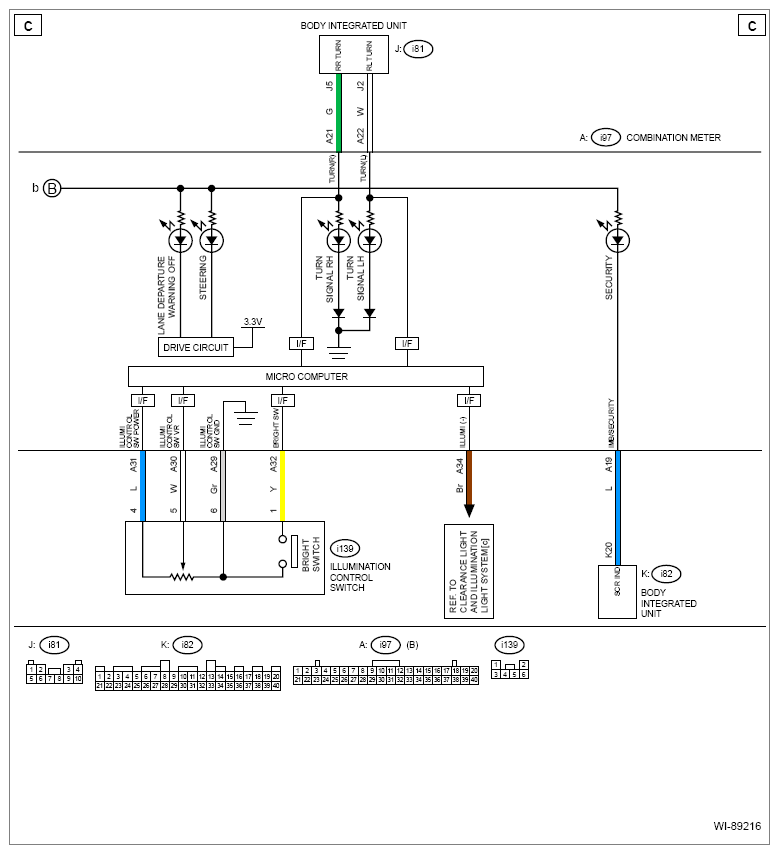

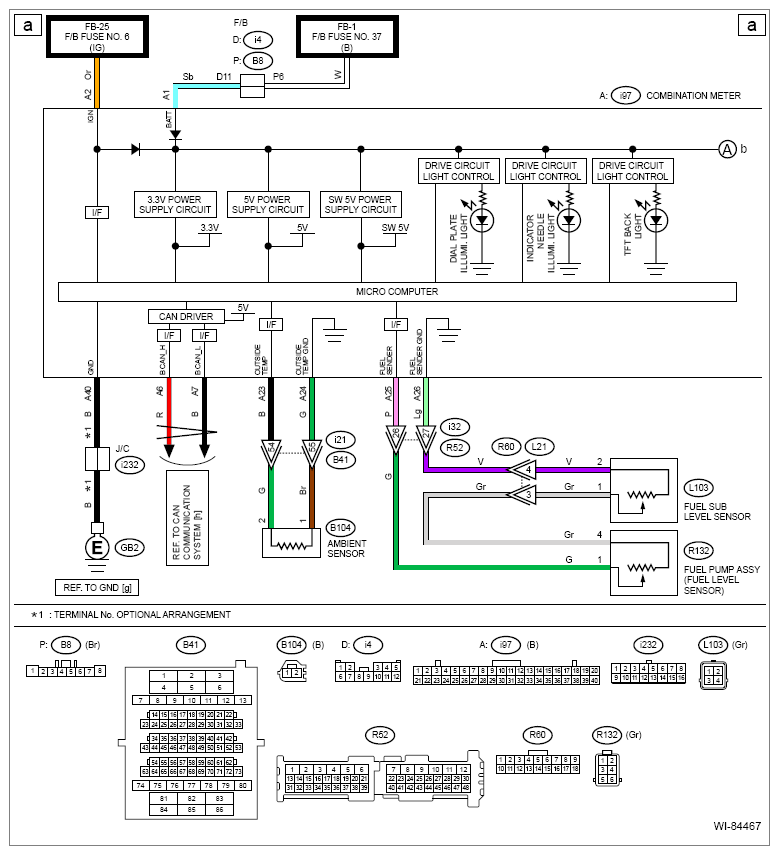

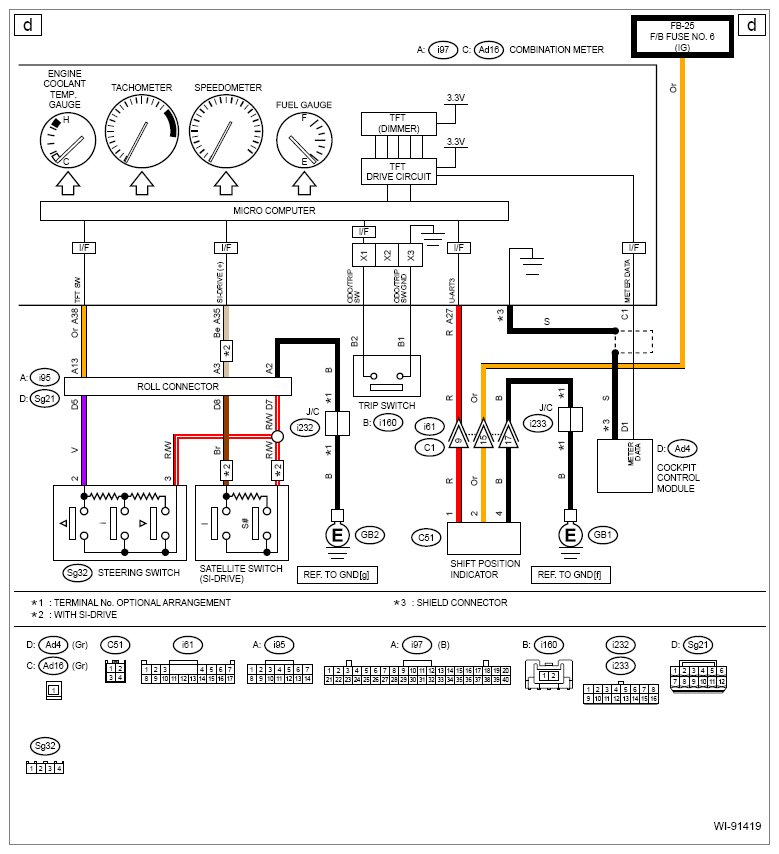

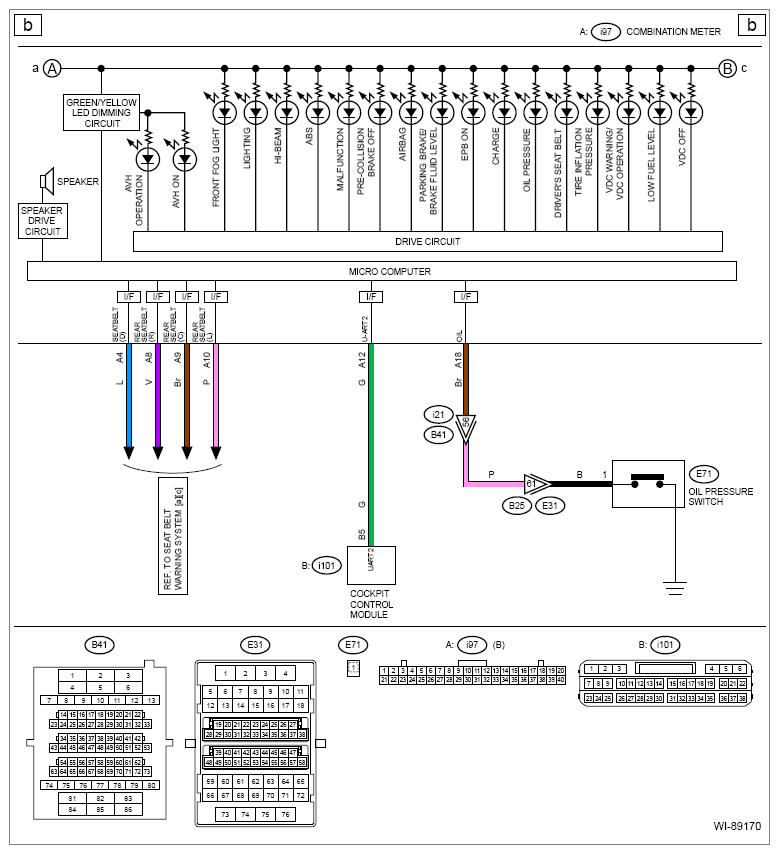

Combination Meter System: Wiring Diagram
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
