Occupant Detection System (Between Airbag Rear Harness And Seat Harness)
- How to disconnect:

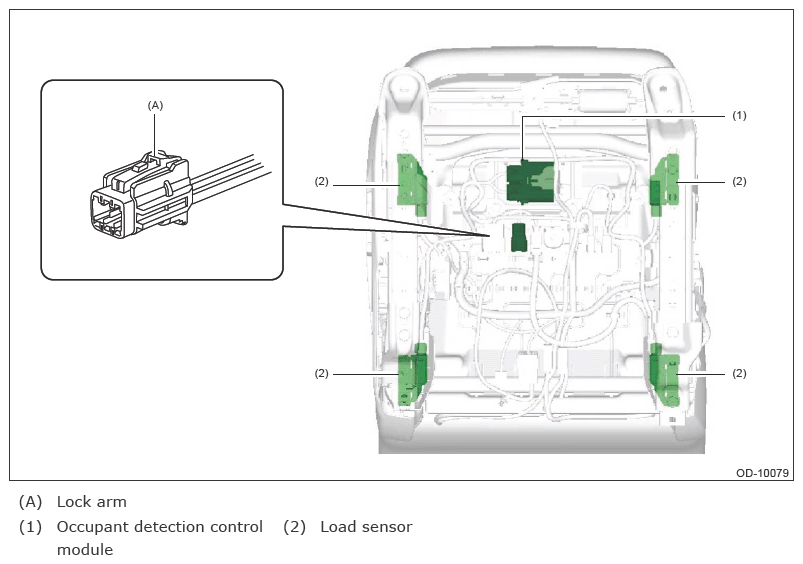

Press the lock arm (A) and disconnect the connector.

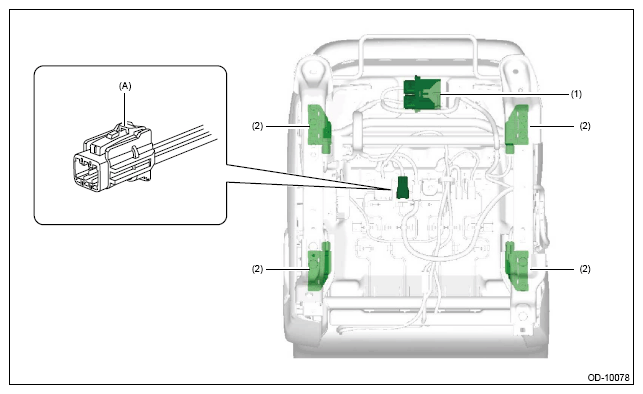

CAUTION: When pulling the slide lock or disconnecting connector, be sure to hold the connector, not the harness.- Back face of passenger's seat (typical examples shown)
- How to connect:
Holding the connector, push it in securely until a clicking sound is heard.
CAUTION: Be sure to insert the connector in until it is locked. Then pull it gently to make sure that it is locked.
