How To Use Probe

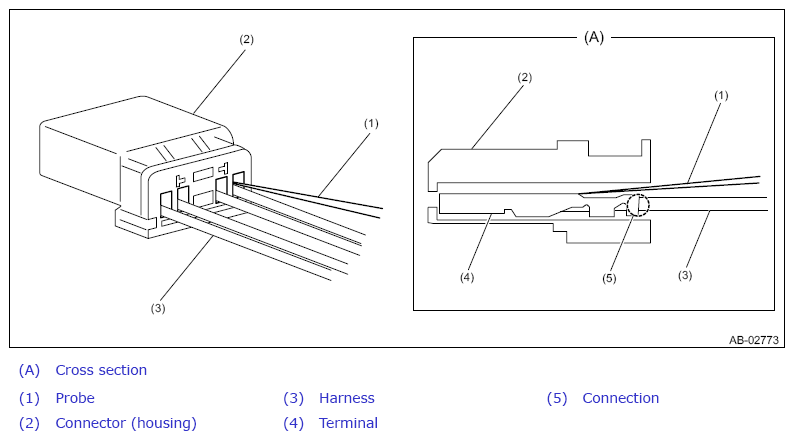

Passenger's airbag module
Insert the probe into the harness hole, and contact it with the terminal.

Courtesy of SUBARU OF AMERICA, INC.
CAUTION:
- Do not insert the probe forcibly.
- Be careful not to contact it to the connection (5) between the terminal and harness. (Harness will come off easily from connector.)
Airbag sensor
Insert the probe into the inspection hole to contact with the terminal.

Courtesy of SUBARU OF AMERICA, INC.
CAUTION:
- Do not push the probe with excessive force against the terminal. (Terminal will come off easily from housing, otherwise.)
- Do not insert the probe anywhere other than inspection hole. (Waterproof property will be lost, otherwise.)
