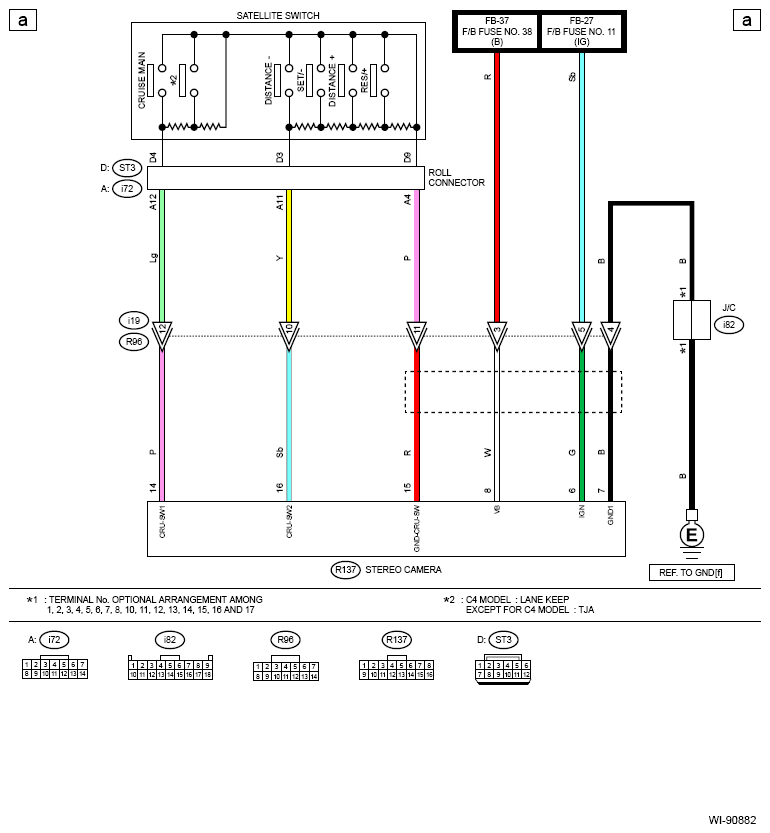

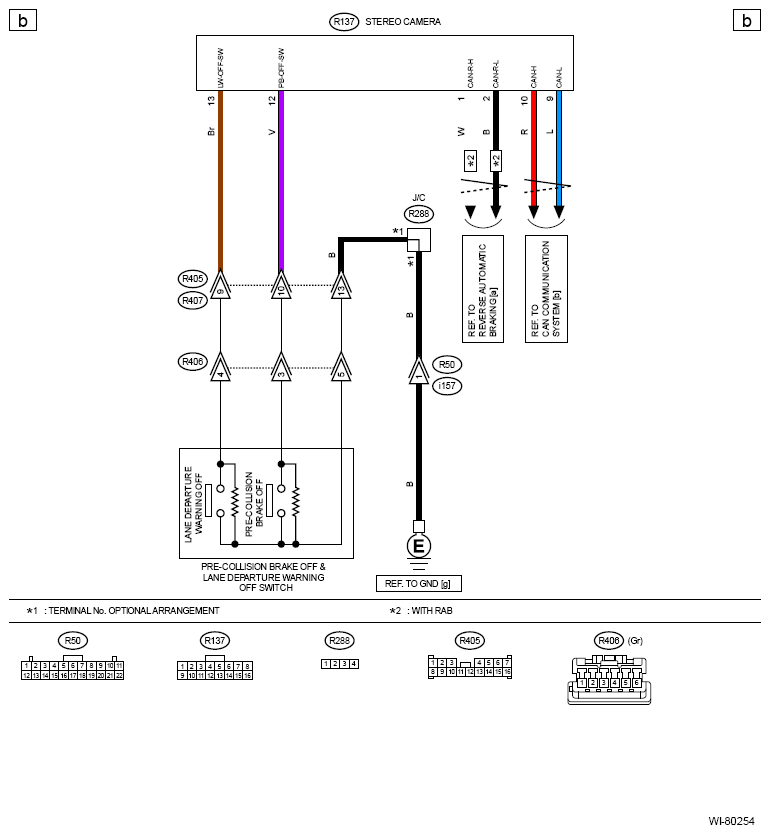

Home >> Subaru >> 2021 >> Forester Base >> Repair and Diagnosis >> Electrical >> Wiring Diagrams >> OEM Wiring Diagrams W/ Connector End Views & Fuse/Relay Locations >> EyeSight System >> Wiring Diagram
