Differential Gear Oil: Replacement

CAUTION: If the differential gear oil is split over exhaust pipe, etc., wipe it off to avoid emitting smoke or causing a fire.

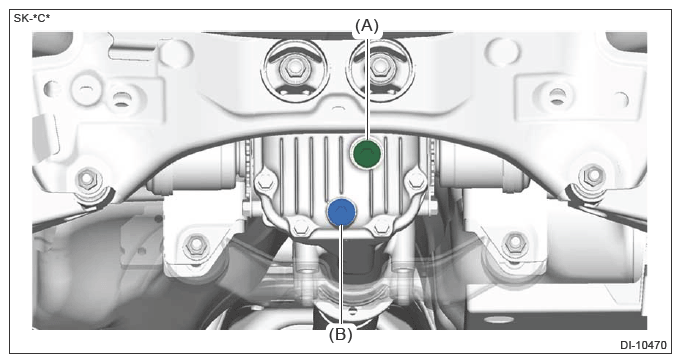

  1. Remove the filler plug (A).
  2. Remove the drain plug (B), and drain differential gear oil.
    G13868654Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the iron powder, etc. from the drain plug.
  4. Install the drain plug using a new gasket.

    Tightening torque:

    50 N.m (5.1 kgf-m, 36.9 ft-lb)

  5. Fill the differential gear oil to the bottom of filler plug hole.
    NOTE: Fill the differential gear oil until it flow out of the filler plug hole and wait the outflow to stop.

    Differential gear oil:

    For the differential gear oil, refer to "RECOMMENDED MATERIALS". Ref. to RECOMMENDED MATERIALS .

    Differential gear oil capacity:

    For the differential gear oil capacity, refer to "SPECIFICATIONS". Ref. to DIFFERENTIALS>General Description>SPECIFICATION .

  6. Using a new gasket, install the filler plug.

    Tightening torque:

    50 N.m (5.1 kgf-m, 36.9 ft-lb)
