Lower Inner Trim: Removal

CAUTION:
  • Before handling the airbag system components, refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM". Ref. to AIRBAG SYSTEM>GENERAL DESCRIPTION>CAUTION .
  • Side impact sensor (under the rear center seat) for the airbag system is located under the front center of the rear seat cushion. Be careful not to apply strong impact to the sensor when working with the rear seat cushion removed.
  1. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Ref. to GROUND TERMINAL REMOVAL OR INSTALLATION .
  2. Release the clips and claws, and then remove the cover side sill front RR.
    CAUTION: Do not pull with excessive force. The claws of the cover side sill front RR may be damaged.

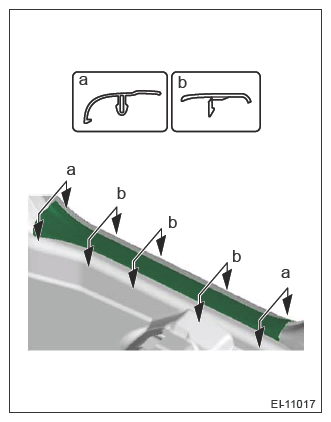

    G13227116Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the weather strip body side flange front.
  4. Remove the clips, and remove the cover side sill front FT.
    G11246556Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the rear seat cushion assembly. Ref. to SEATS>REAR SEAT>REMOVAL .
  6. Disconnect the claws and remove the cover catcher.
    G13227119Courtesy of SUBARU OF AMERICA, INC.
    NOTE: Remove the cover catcher using a plastic remover.
  7. Release the clips and claws, and then remove the cover side sill rear UPR.
    CAUTION: Do not pull with excessive force. Doing so may damage the claws of the cover side sill rear UPR.
    G13593523Courtesy of SUBARU OF AMERICA, INC.
  8. Remove the weather strip body side flange rear.
  9. Release the clips, and remove the trim panel assembly B pillar LWR.

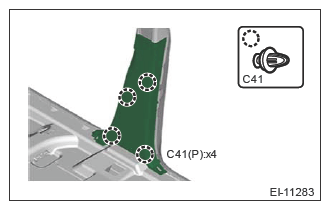

G13201640Courtesy of SUBARU OF AMERICA, INC.
