Manual Seat

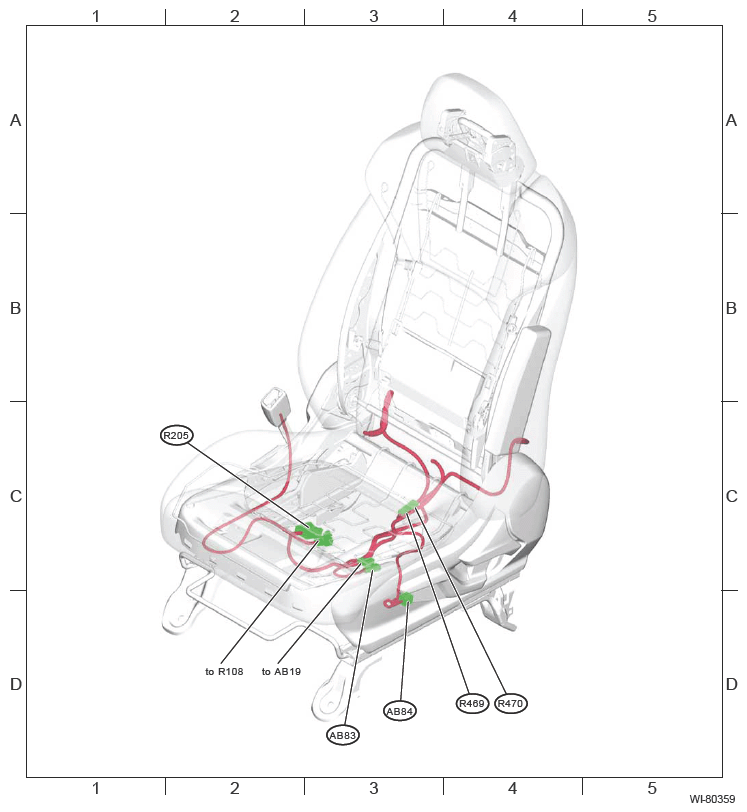

G13227583Courtesy of SUBARU OF AMERICA, INC.
Connector Connecting to
No. Pole Color Area No. Description
AB83 2 Y C-3 AB74 Rear wiring harness LH
AB84 2 B D-3   Seat position sensor LH
R205 14 (1) C-3 R341 Rear wiring harness LH
R469 2 G C-3 R470 FB heater
R470 2 G C-3 R469 FC heater
(1) White or natural color
