Multi Information Display Switch

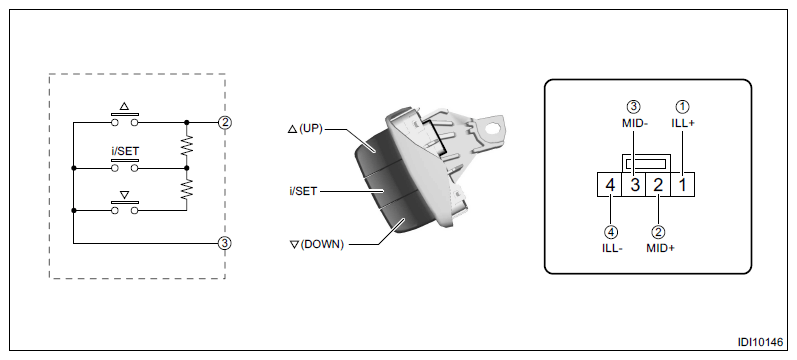

Measure the resistance between connector terminals.

Preparation tool:

Circuit tester

Courtesy of SUBARU OF AMERICA, INC.

Terminal No.	Inspection conditions		Standard
3 - 2	Δ(UP) i/SET (DOWN)	All OFF	Approx. 1 MΩ or more
	Δ (UP)	ON	Less than 1 Ω
	i/SET	ON	Approx. 1, 000 Ω
	(DOWN)	ON	Approx. 3, 700 Ω

Apply battery voltage between the connector terminals to check lighting condition of illumination inside the switch.

CAUTION: When applying battery voltage, do not mix up the positive (+) side and the negative (-) side.
Incorrect polarity connection may cause LED damage inside the switch.

Terminal No.	Inspection conditions	Specification
1 (+) - 4 (-)	Apply battery voltage.	Light ON

Replace the switch assembly steering (MID) if it is found defective.
