Section 8 (Brake Control System (Diagnostics) (HEV)): Electrical Component Location: Location

WARNING: This page is about a different variant/trim than selected.

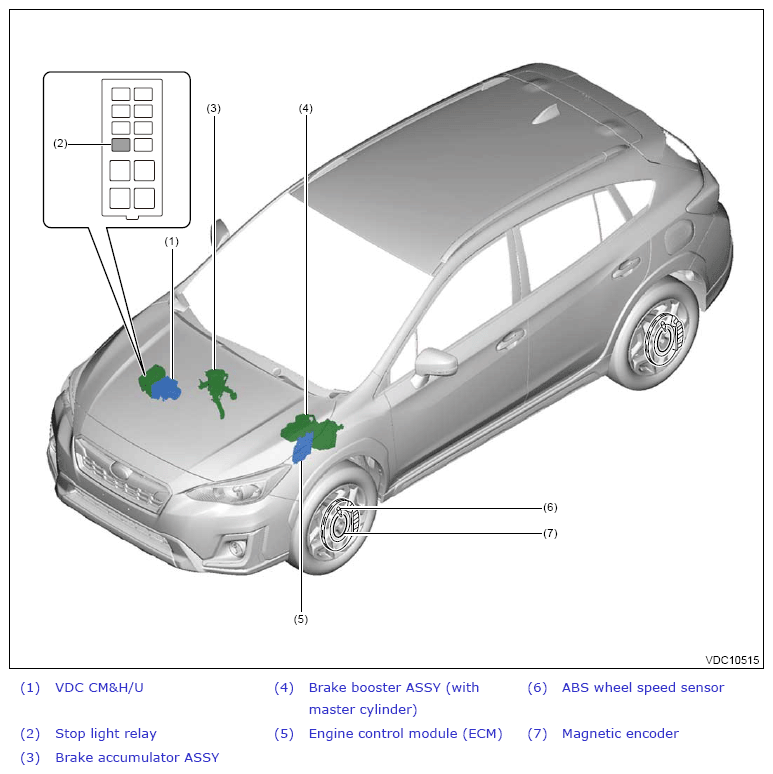

G13942627Courtesy of SUBARU OF AMERICA, INC.

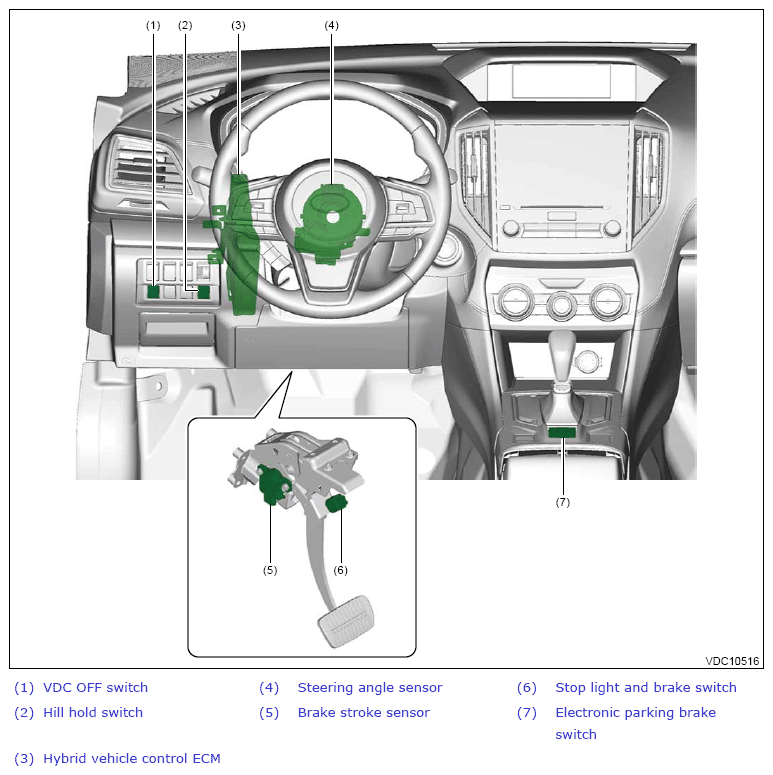

G13942628Courtesy of SUBARU OF AMERICA, INC.
