Hybrid Mode Switch

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the ground terminal from battery. Ref. to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
    NOTE: Release the shift lock and shift the select lever to the "N" position. Ref. to CONTROL SYSTEMS>SELECT LEVER>REMOVAL .
  2. Remove the cover assembly - front. Ref. to EXTERIOR/INTERIOR TRIM>CONSOLE BOX>REMOVAL .
  3. Remove the hybrid mode switch.
    1. Disconnect the connector.

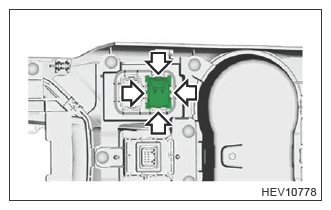

    2. Release the claws and remove the hybrid mode switch.
      G13939794Courtesy of SUBARU OF AMERICA, INC.
