Charger Duct: Front

WARNING: This page is about a different variant/trim than selected.
CAUTION: Airbag system satellite safing sensor is located under the front center of the rear seat cushion. Be careful not to apply strong impact to the sensor when working with the rear seat cushion removed.
  1. Disconnect the ground terminal from battery and wait for at least 60 seconds before starting work. Ref. to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
  2. Take out the mat - rear floor.
    1. Release the clips and hooks, and remove the mat - rear floor.
      G13939699Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the rear seat cushion assembly. Ref. to SEATS>REAR SEAT>REMOVAL .
  4. Remove the trim panel - rear apron RH. Ref. to EXTERIOR/INTERIOR TRIM>REAR QUARTER TRIM>REMOVAL .
  5. Remove the duct - outlet charger.

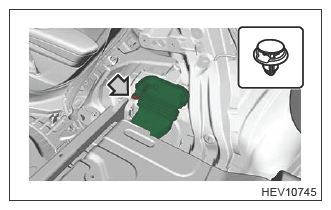

    1. Remove the clip and remove the duct - outlet charger.
      G13939700Courtesy of SUBARU OF AMERICA, INC.
