EV Charger

WARNING: This page is about a different variant/trim than selected.
  1. Remove the charger cooling blower. Ref. to HYBRID ELECTRIC VEHICLE>ELECTRIC VEHICLE CHARGER>REMOVAL>COOLING BLOWER .

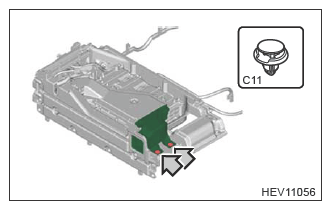

  2. Remove the duct - outlet charger INN.
    1. Remove the clip and remove the duct - outlet charger INN.
      G13939722Courtesy of SUBARU OF AMERICA, INC.

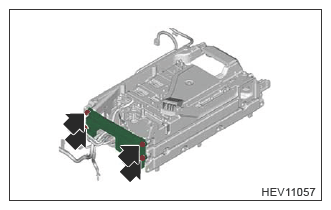

  3. Remove the plate - charger rear.
    1. Remove the bolt and remove the plate - charger rear.
      G13939723Courtesy of SUBARU OF AMERICA, INC.

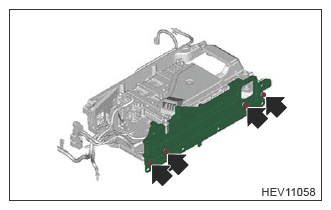

  4. Remove the plate - charger side.
    1. Remove the bolt and remove the plate - charger side.
      G13939724Courtesy of SUBARU OF AMERICA, INC.

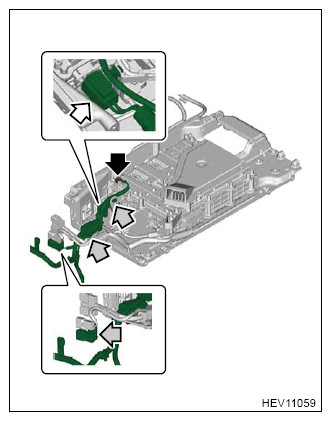

  5. Remove the HV battery charger wire No. 1.
    1. Remove the bolts and disconnect the ground terminal.
    2. Release the claws and then remove the cable clip.
    3. Disconnect the connector and remove the HV battery charger wire No. 1.
      CAUTION: Apply tape or similar item (that will not leave adhesive residue) to close the opening after the cable was disconnected so that foreign matter, water drops, or other substance does not enter.
      1. Use protective tape to wrap a flat tip screwdriver of an appropriate size for the insertion opening, and disengage lock (a).
      2. Press the tab (b) to disconnect the connector.
        G13939725Courtesy of SUBARU OF AMERICA, INC.
      3. Remove the HV battery charger wire No. 1.
        G13939726Courtesy of SUBARU OF AMERICA, INC.

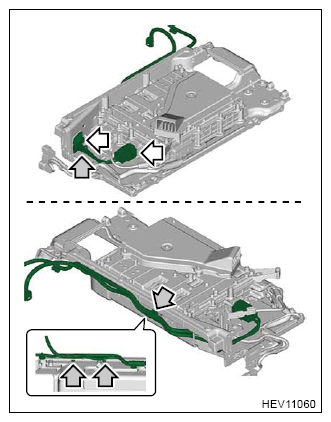

  6. Remove the HV battery charger wire No. 2.
    1. Release the claws and then remove the cable clip.
    2. Disconnect the claws and hooks and remove the cable protector.
    3. Disconnect the connector and remove the HV battery charger wire No. 2.
      CAUTION: Apply tape or similar item (that will not leave adhesive residue) to close the opening after the cable was disconnected so that foreign matter, water drops, or other substance does not enter.
      1. Use protective tape to wrap a flat tip screwdriver of an appropriate size for the insertion opening, and disengage lock (a).
      2. Press the tab (b) to disconnect the connector.
        G13939727Courtesy of SUBARU OF AMERICA, INC.
      3. Remove the HV battery charger wire No. 2.
        G13939728Courtesy of SUBARU OF AMERICA, INC.

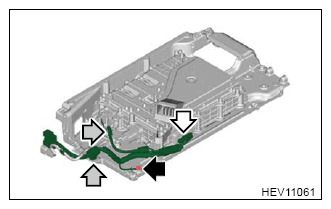

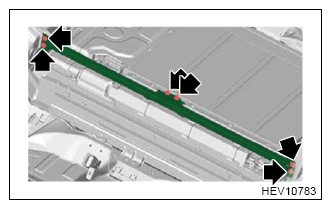

  7. Remove the charger harness.
    1. Remove the bolts and disconnect the ground terminal.
    2. Release the claws and then remove the harness clip.
    3. Disconnect the connector and remove the charger harness.
      G13939729Courtesy of SUBARU OF AMERICA, INC.
      G13939730Courtesy of SUBARU OF AMERICA, INC.

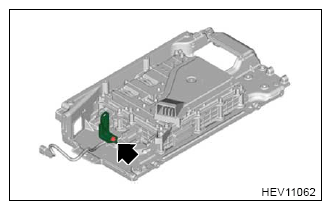

  8. Remove the bracket - harness.
    1. Remove the bolts, and then remove the bracket - harness.
      G13939731Courtesy of SUBARU OF AMERICA, INC.

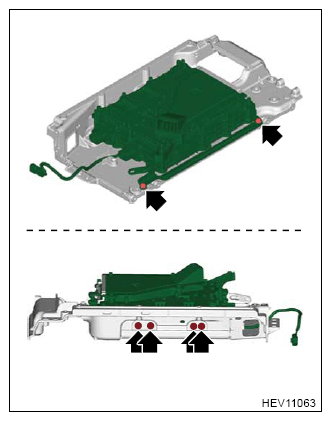

  9. Remove the EV charger.
    1. Remove the bolt and remove the EV charger from the frame - charger.
      G13939732Courtesy of SUBARU OF AMERICA, INC.

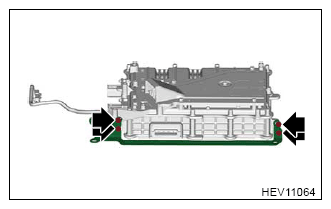

    2. Remove the bolts, and then remove the bracket - EV charger.
      G13939733Courtesy of SUBARU OF AMERICA, INC.
