Charging Inlet Door

WARNING: This page is about a different variant/trim than selected.
CAUTION: Airbag system satellite safing sensor is located under the front center of the rear seat cushion. Be careful not to apply strong impact to the sensor when working with the rear seat cushion removed.
  1. Disconnect the ground terminal from battery and wait for at least 60 seconds before starting work. Ref. to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the rear seat cushion assembly. Ref. to SEATS>REAR SEAT>REMOVAL .
  3. Remove the trim panel - rear apron LH. Ref. to EXTERIOR/INTERIOR TRIM>REAR QUARTER TRIM>REMOVAL .
  4. Remove the duct - battery cooling blower LH. Ref. to HYBRID ELECTRIC VEHICLE>HIGH VOLTAGE BATTERY COOLING SYSTEM>REMOVAL>FRONT DUCT .
  5. Remove the battery cooling blower assembly LH. Ref. to HYBRID ELECTRIC VEHICLE>HIGH VOLTAGE BATTERY COOLING SYSTEM>REMOVAL>COOLING BLOWER .
  6. Remove the duct assembly - cooling out LH. Ref. to HYBRID ELECTRIC VEHICLE>HIGH VOLTAGE BATTERY COOLING SYSTEM>REMOVAL>REAR DUCT .
  7. Remove the charge lid lock with motor assembly.

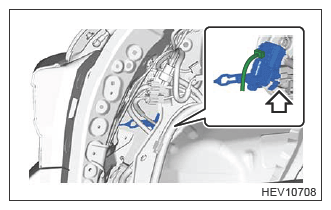

    1. Disconnect the charging inlet door cable (white).
    2. Disconnect the connector and claw, and remove the charge lid lock with motor assembly.
      G13939832Courtesy of SUBARU OF AMERICA, INC.

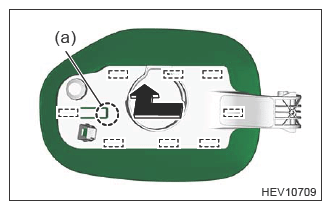

  8. Remove the flap - outer.
    1. Release the claw (a), and remove the flap - outer in the direction of the arrow.
      G13939833Courtesy of SUBARU OF AMERICA, INC.
  9. Remove the saucer SUB-assembly.

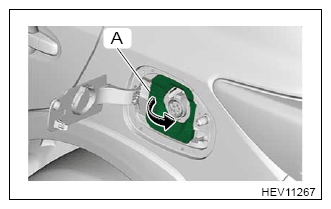

    1. Release the claw at part A on the front of the vehicle, then remove the saucer - cover.
      G13939834Courtesy of SUBARU OF AMERICA, INC.

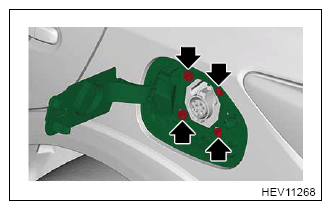

    2. Remove the bolt.
      G13939835Courtesy of SUBARU OF AMERICA, INC.
    3. Disconnect the connector.

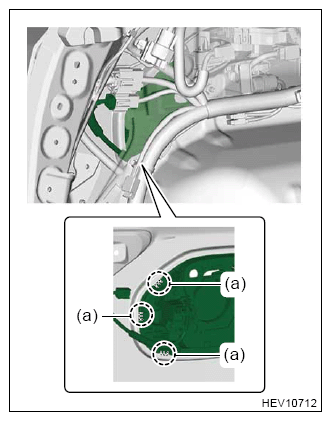

    4. Release the claw (a) from inside the vehicle.
      G13939836Courtesy of SUBARU OF AMERICA, INC.

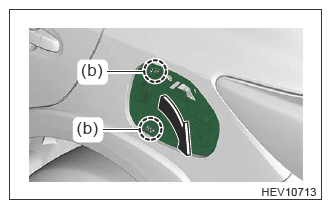

    5. Pull toward you while pulling the saucer - COMPL toward the rear of the vehicle to release claw (b).
      G13939837Courtesy of SUBARU OF AMERICA, INC.
    6. While closing the saucer - COMPL flap, remove the saucer SUB-assembly.
