Check The Charging Inlet Lock Assembly Unit
WARNING: This page is about a different variant/trim than selected.
- Visual inspection
- Check that there is no foreign matter or other substance on the lock pin of the charging inlet lock assembly.
- Check that there is no bending, deformation, or damage of the lock pin of the charging inlet lock assembly.NOTE:
- If there is foreign matter on the lock pin, remove the foreign matter. If the foreign matter cannot be removed, replace the charging inlet lock assembly.
- If the lock pin does not operate correctly due to bending or deformation, or if the lock pin is damaged, replace the charging inlet lock assembly.
- Check lock pin operation.

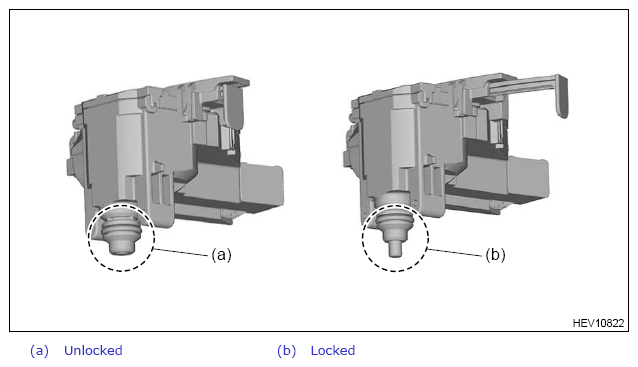

- Check the operating conditions of the lock pin when battery voltage is applied to the connector terminal.CAUTION:
- Complete the check within a battery connection lasting approximately 2 or 3 seconds. If voltage is applied for a longer time, there is the risk of damage to the charging inlet lock assembly.
- Check the lock pin conditions before connecting battery voltage, and check the connection sequence.
- If the lock pin is locked, check the unlock operation.
- If the lock pin is unlock, check the lock operation.
Terminal No. Inspection conditions Specification 10 (+) - 6 (-) Apply battery voltage. Unlocked to locked 3 (+) - 6 (-) Locked to unlocked - Replace the charging inlet lock assembly if faulty is found to be defective.
- Check the operating conditions of the lock pin when battery voltage is applied to the connector terminal.
- Check the lock pin detection circuit.

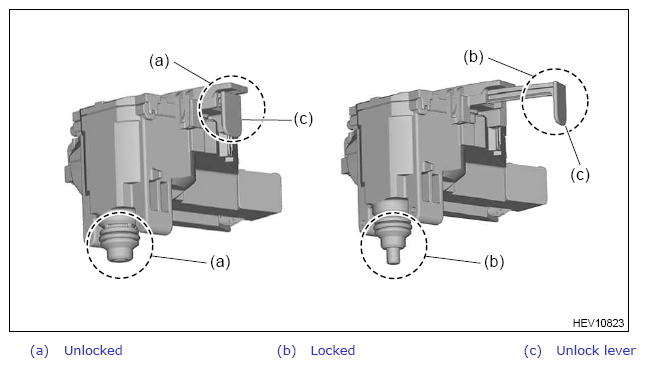

- Measure the resistance between connector terminals.CAUTION: The lock pin locked to unlocked and unlocked to locked operation must be performed by operating the unlock lever.
Preparation tool: Circuit tester
Terminal No. Inspection conditions Standard 4 - 6 Locked Less than 1 Ω Unlocked 10 kΩ or more - Replace the charging inlet lock assembly if the inspection result is not within the standard value.
- Measure the resistance between connector terminals.
- Check the lock power supply circuit.
- Measure the resistance between connector terminals.
Preparation tool: Circuit tester
Terminal No. Inspection conditions Standard 7 - 6 When battery voltage is not applied between terminals 10 and 6 Less than 1 Ω 1 - 6 When battery voltage is not applied between terminals 3 and 6 - Replace the charging inlet lock assembly if the inspection result is not within the standard value.
- Measure the resistance between connector terminals.
