Check The Charging Inlet Lock Assembly On The Vehicle
WARNING: This page is about a different variant/trim than selected.

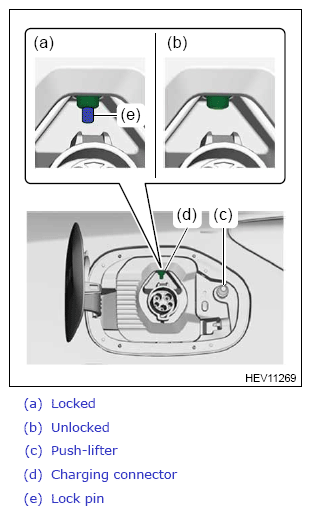

- Check operation of the charging connector.
- Press in the push-lifter and check that the lock pin of the charging connector lock operates.WARNING: Do not insert a finger or hand under the lock pin while working. There is the risk of injury resulting from being pinched by the lock pin.NOTE:
- Lock all doors and carry the access key while working within the charging lid unlock detection area.
- Check that the battery (12 V) is normal.
- Press in the push-lifter and check that the lock pin of the charging connector lock operates.
