Push-Lifter Switch
WARNING: This page is about a different variant/trim than selected.
- INSPECT THE RESISTANCE

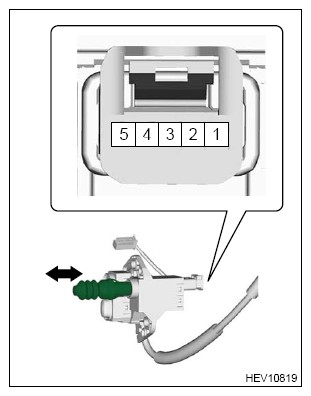

- Measure the resistance between connector terminals.
Preparation tool: Circuit tester
Terminal No. Inspection conditions Standard 1 - 5 When the lifter is not pressed in (OFF) 10 kΩ or more 1 - 5 When the lifter is pressed in (ON) Less than 1 Ω 2 - 4 When the lifter is not pressed in (OFF) Less than 1 Ω 2 - 4 When the lifter is pressed in (ON) 10 kΩ or more - Replace the EV charger lid switch assembly if the inspection result is not within the standard value.
- Measure the resistance between connector terminals.
