Charging Inlet

WARNING: This page is about a different variant/trim than selected.

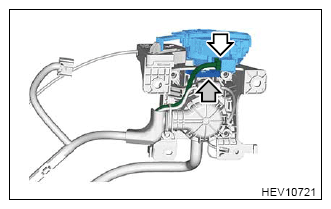

  1. Remove the charging inlet lock assembly.
    1. Disconnect the connector.
    2. Remove the pin and remove the charging inlet lock assembly.
      G13939846Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the inlet AC charger cable.

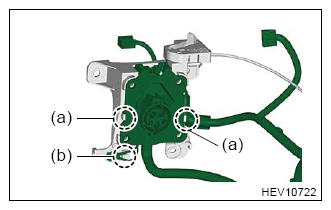

    1. Remove the cable clips.
    2. Disengage claw (a) and flange (b), and remove the inlet AC charger cable.
      G13939847Courtesy of SUBARU OF AMERICA, INC.
