Section 3 (P-HEV Hybrid Powertrain Control System (Diagnostics) (1 Of 4)): Electrical Component Location: Location

WARNING: This page is about a different variant/trim than selected.

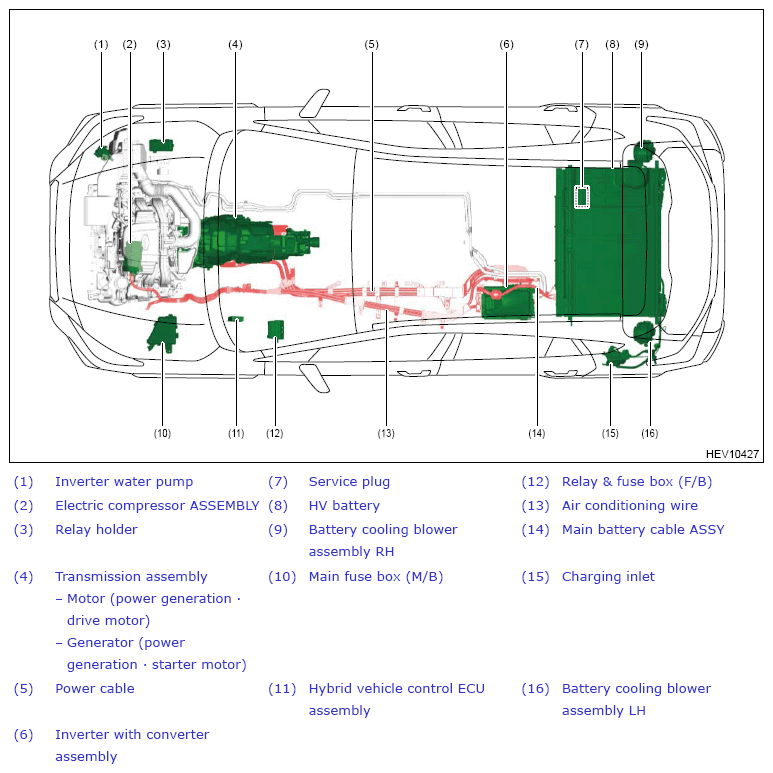

G13942286Courtesy of SUBARU OF AMERICA, INC.

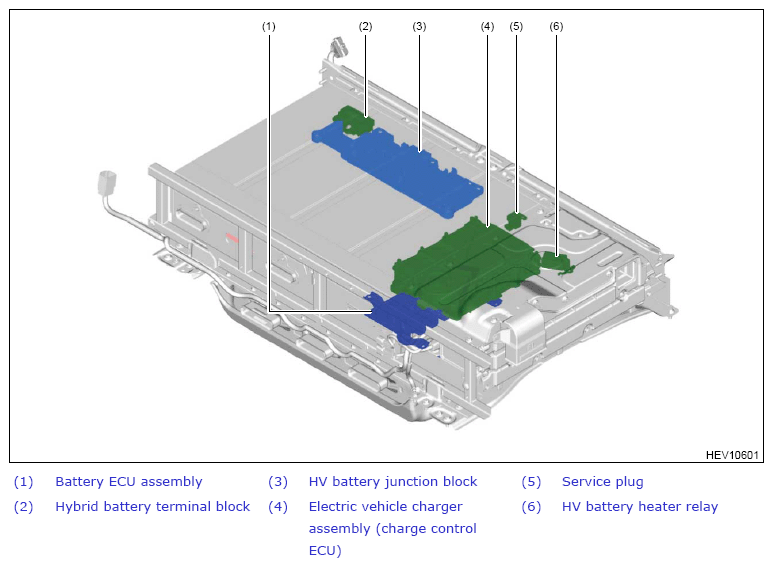

G13942287Courtesy of SUBARU OF AMERICA, INC.

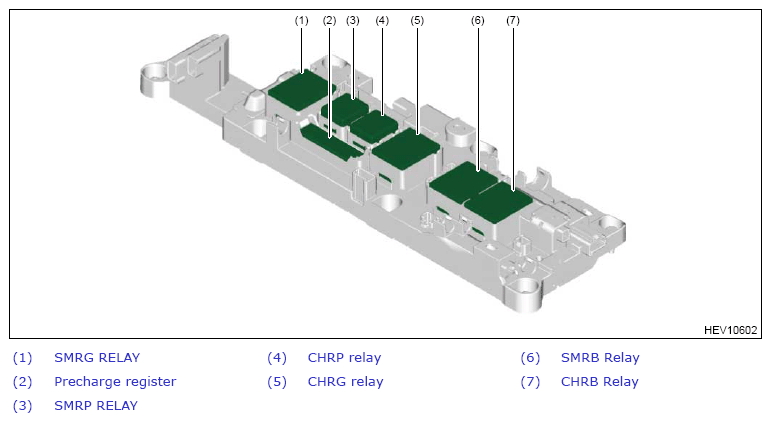

G13942288Courtesy of SUBARU OF AMERICA, INC.

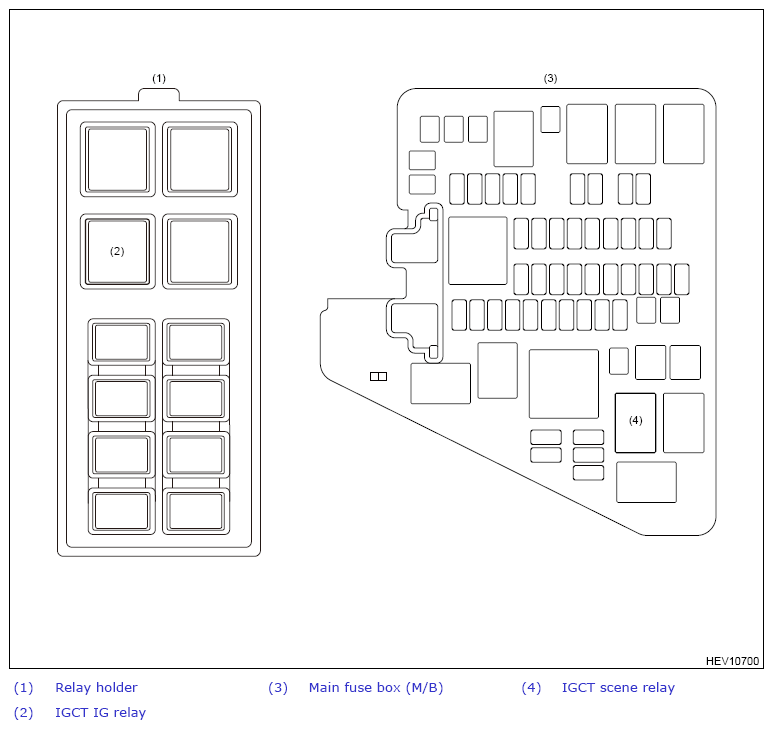

G13942289Courtesy of SUBARU OF AMERICA, INC.
G13942290Courtesy of SUBARU OF AMERICA, INC.
