Diagnostic Method
WARNING: This page is about a different variant/trim than selected.

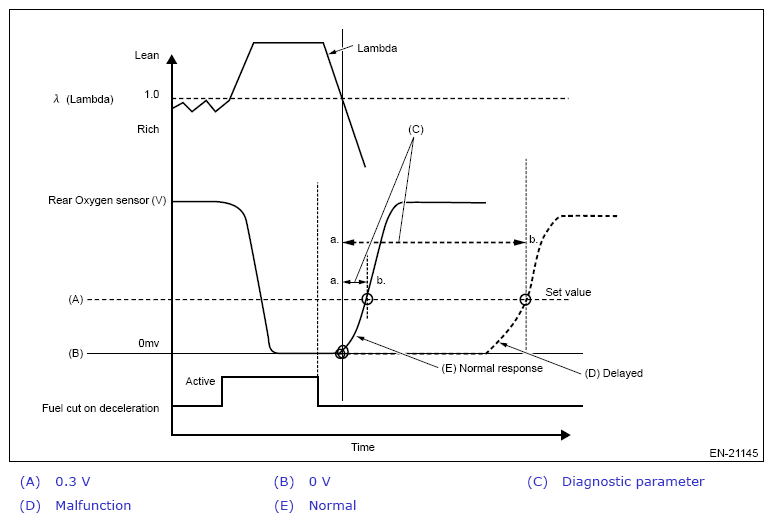

Detect a malfunction by measuring the time from fuel cut completed until the rear oxygen sensor voltage begins to rise.
Judge as NG when the following conditions are established.
JUDGMENT VALUE SPECIFICATIONS
| Malfunction Criteria | Threshold Value |
|---|---|
| Output voltage value of rear oxygen sensor | Less than 0.2V |
| Elapsed time | More than value of Map |
AVERAGE VALUE OF INTAKE AIR AMOUNT SPECIFICATIONS - MAP
| Average value of intake air amount (g/s(oz/s)) | 14.99 (0.53) | 15.00 (0.53) | 18.00 (0.63) |
|---|---|---|---|
| Elapsed time (ms) | 5504 | 5408 | 5408 |
Time needed for diagnosis: Less than 1 s
Malfunction indicator light illumination: Illuminates when malfunction occurs in 2 continuous driving cycles.
