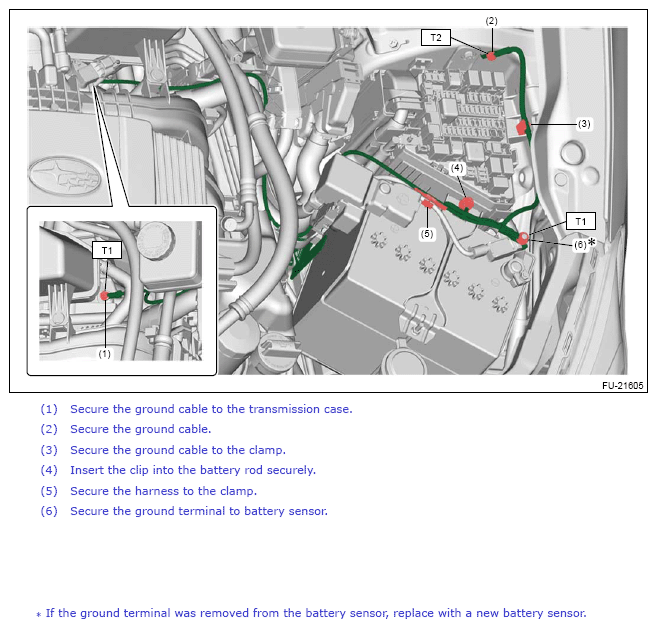

Structural Diagram 4 (Battery Cable Part)
WARNING: This page is about a different variant/trim than selected.
Courtesy of SUBARU OF AMERICA, INC.
Tightening torque: N.m (kgf-m, ft-lb)
T1: 11 (1.1, 8.1)
T2: 13 (1.3, 9.6)
* If the ground terminal was removed from the battery sensor, replace with a new battery sensor
.
