Pitching Stopper

WARNING: This page is about a different variant/trim than selected.
  1. Remove the clip from the air intake boot, and loosen the clamp.
    G13230667Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the air intake boot, and place it aside so that it does not interfere with the work.
    CAUTION: Be careful not to pull out the PCV hose.
    G13230668Courtesy of SUBARU OF AMERICA, INC.

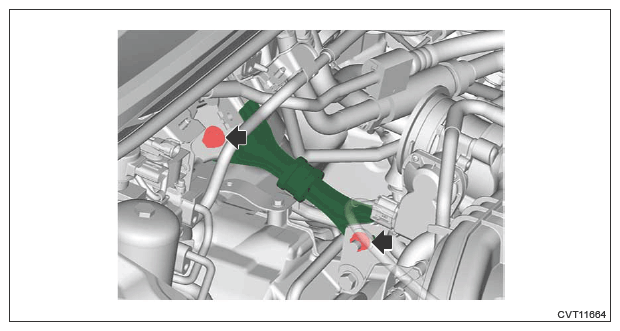

  3. Remove the pitching stopper.
    G13233177Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the air breather hose and pitching stopper bracket.
    NOTE: Perform this procedure only when required.
    G13233178Courtesy of SUBARU OF AMERICA, INC.
