Pitching Stopper

WARNING: This page is about a different variant/trim than selected.

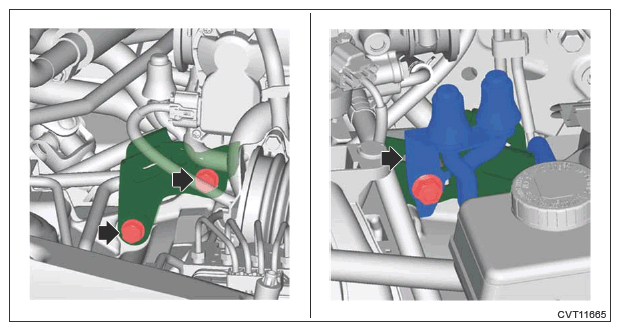

Install the air breather hose and install the pitching stopper bracket.
NOTE: Tighten the bolt side while holding the nut side.

Tightening torque:

41 N.m (4.2 kgf-m, 30.2 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

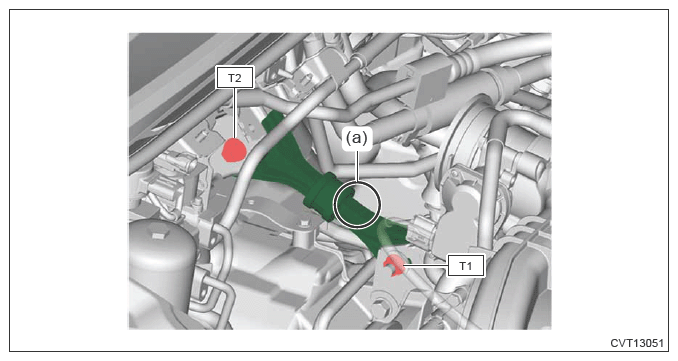

Install the pitching stopper.
NOTE: Install with the front mark (a) facing towards the front of the vehicle.

Tightening torque:

T1: 50 N.m (5.1 kgf-m, 36.9 ft-lb)

T2: 58 N.m (5.9 kgf-m, 42.8 ft-lb)

Fig 1: Pitching Stopper Nuts And Bolts (With Torque Specification)
Courtesy of SUBARU OF AMERICA, INC.
Install the air intake boot. Ref. to INTAKE (INDUCTION) (H4DO (EXCEPT FOR HEV))>AIR INTAKE BOOT>INSTALLATION .
