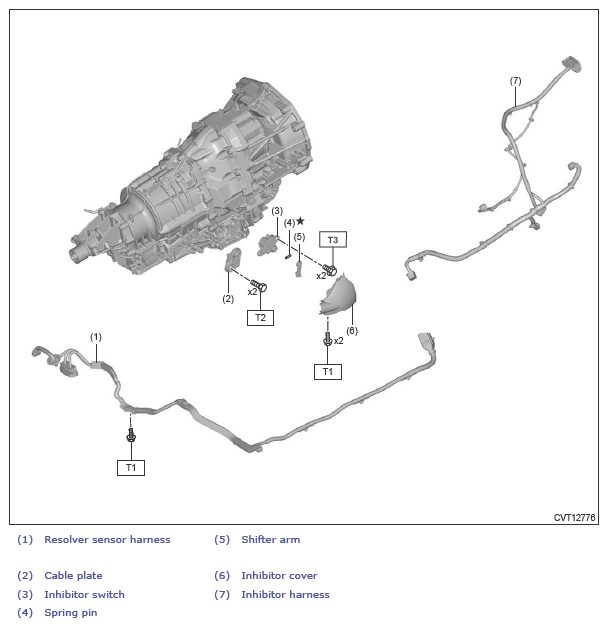

Remove The Transmission Harness & Inhibitor Switch
WARNING: This page is about a different variant/trim than selected.
Tightening torque: N.m (kgf-m, ft-lb)
T1: 7.5 (0.8, 5.5)
T2: 25 (2.5, 18.4)
T3: Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TH2A)>INHIBITOR SWITCH>ADJUSTMENT>N RANGE POSITION ADJUSTMENT .
