Section 13 (SUBARU Eyesight System (Driver Assist) (Diagnostics) (HEV)): Electrical Component Location: Location

WARNING: This page is about a different variant/trim than selected.

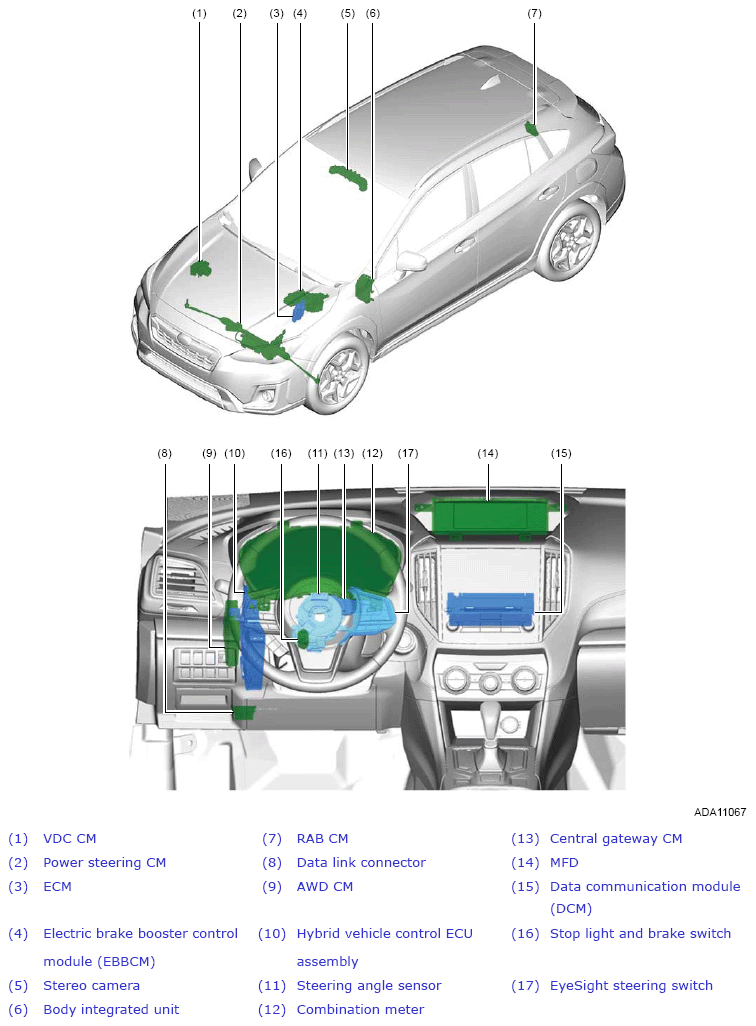

G13942998Courtesy of SUBARU OF AMERICA, INC.

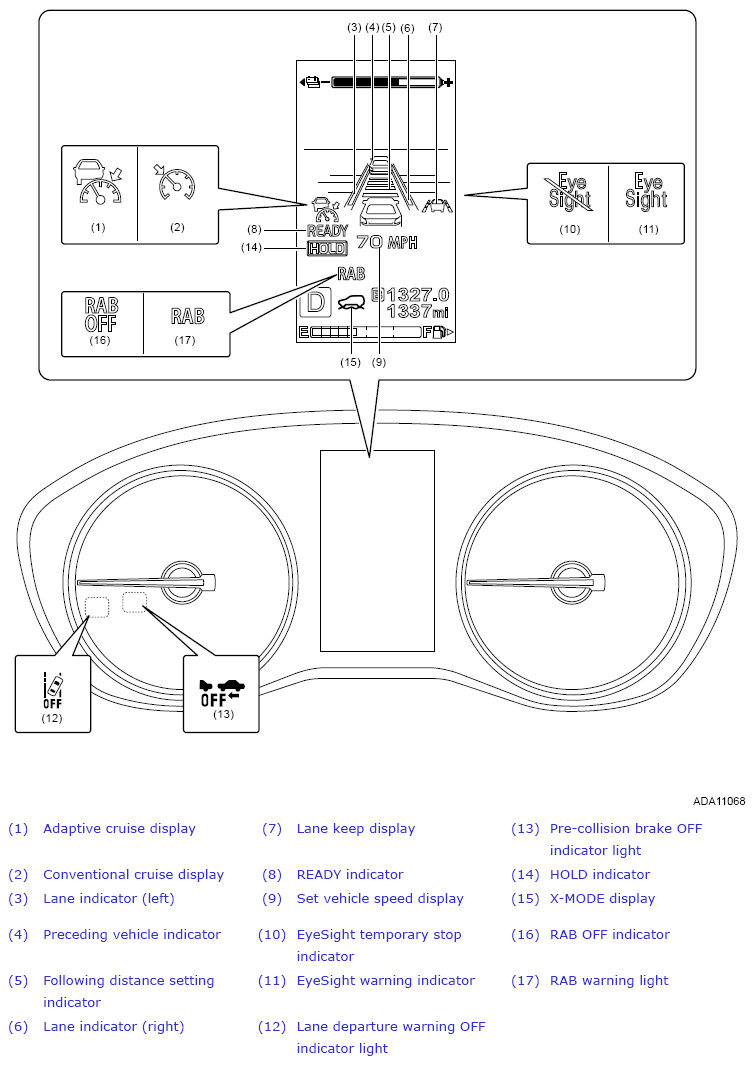

G13942999Courtesy of SUBARU OF AMERICA, INC.

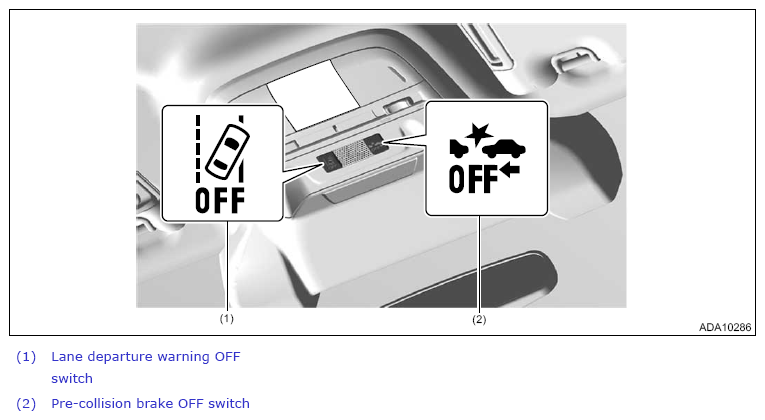

G13943000Courtesy of SUBARU OF AMERICA, INC.

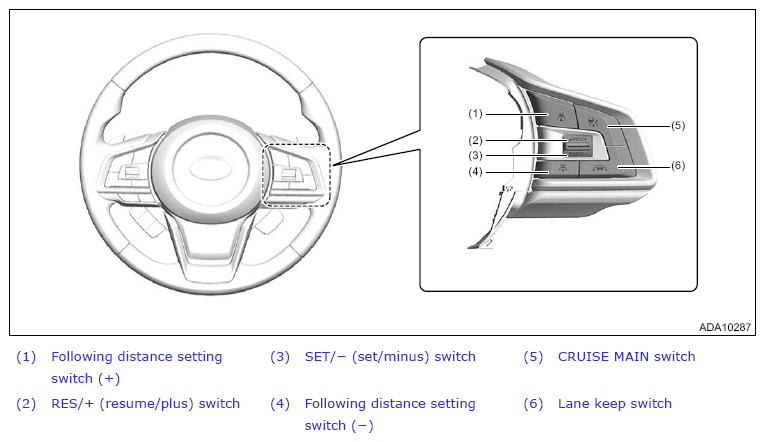

G13943001Courtesy of SUBARU OF AMERICA, INC.
