Reverse Idler Gear: Removal

WARNING: This page is about a different car, the 2021 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the manual transmission assembly from the vehicle. Ref. to MANUAL TRANSMISSION AND DIFFERENTIAL (5MT)> MANUAL TRANSMISSION ASSEMBLY>REMOVAL .
  2. Remove the back-up light switch and the neutral position switch. Ref. to MANUAL TRANSMISSION AND DIFFERENTIAL (5MT)>SWITCHES AND HARNESS>REMOVAL .
  3. Remove the transfer case together with the extension case assembly. Ref. to MANUAL TRANSMISSION AND DIFFERENTIAL (5MT)>TRANSFER CASE AND EXTENSION CASE ASSEMBLY>REMOVAL .
  4. Remove the transmission case. Ref. to MANUAL TRANSMISSION AND DIFFERENTIAL (5MT)>TRANSMISSION CASE>REMOVAL .
  5. Remove the drive pinion shaft assembly. Ref. to MANUAL TRANSMISSION AND DIFFERENTIAL (5MT)>DRIVE PINION SHAFT ASSEMBLY>REMOVAL .
  6. Remove the main shaft assembly. Ref. to MANUAL TRANSMISSION AND DIFFERENTIAL (5MT)> MAIN SHAFT ASSEMBLY>REMOVAL .
  7. Remove the front differential assembly. Ref. to MANUAL TRANSMISSION AND DIFFERENTIAL (5MT)>FRONT DIFFERENTIAL ASSEMBLY>REMOVAL .
  8. Remove the shifter forks and rods. Ref. to MANUAL TRANSMISSION AND DIFFERENTIAL (5MT)>SHIFTER FORK AND ROD>REMOVAL .

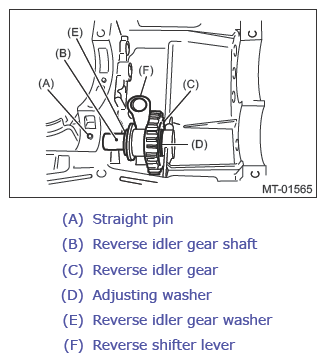

  9. Pull out the straight pin, and remove the reverse idler gear shaft, adjusting washer, reverse idler gear and washer.
    G13937497Courtesy of SUBARU OF AMERICA, INC.
  10. Remove the reverse shifter lever.
