Parking Brake Lever & Cable

• Drum in disc type model

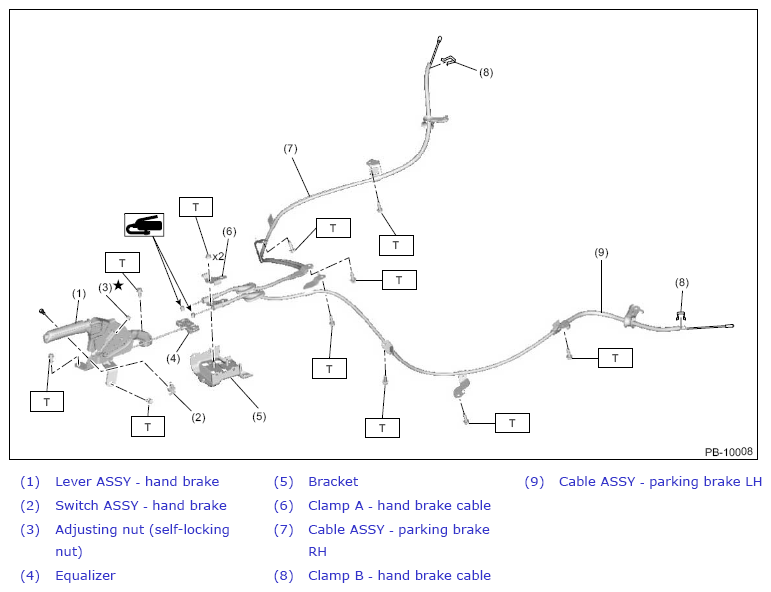

Fig 1: Parking Brake Lever & Cable Components - Drum In Disc Type Model

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 18 (1.8, 13.3)

• Electronic parking brake model

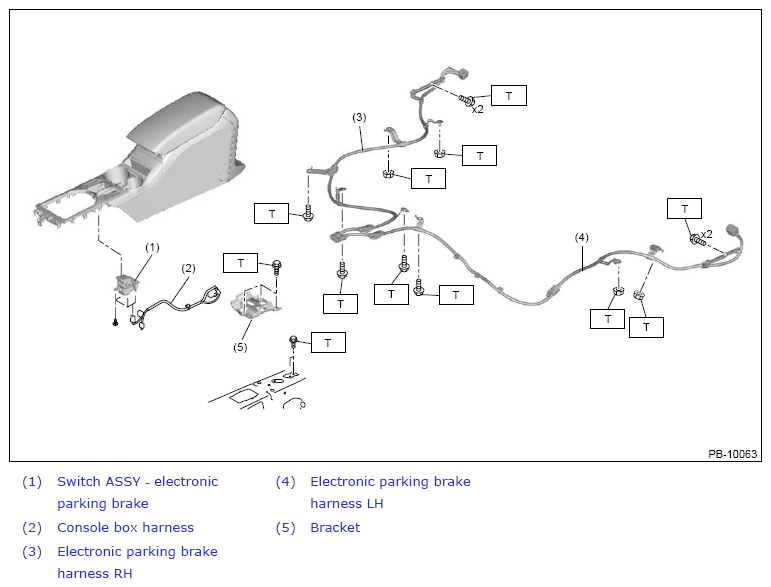

Fig 2: Parking Brake Lever & Cable Components - Electronic Parking Brake Model

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 18 (1.8, 13.3)
