Reverse Automatic Braking
>>
Wiring Diagram

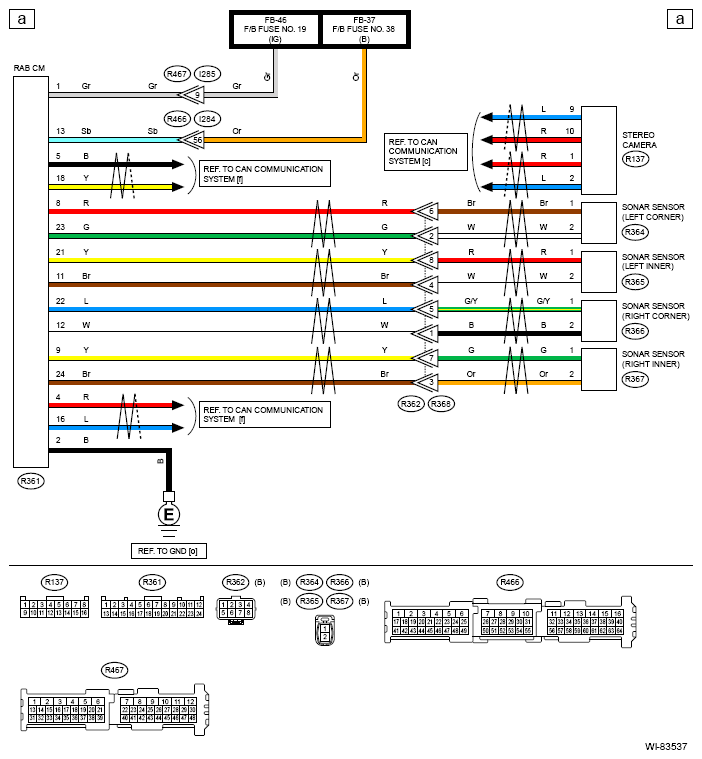

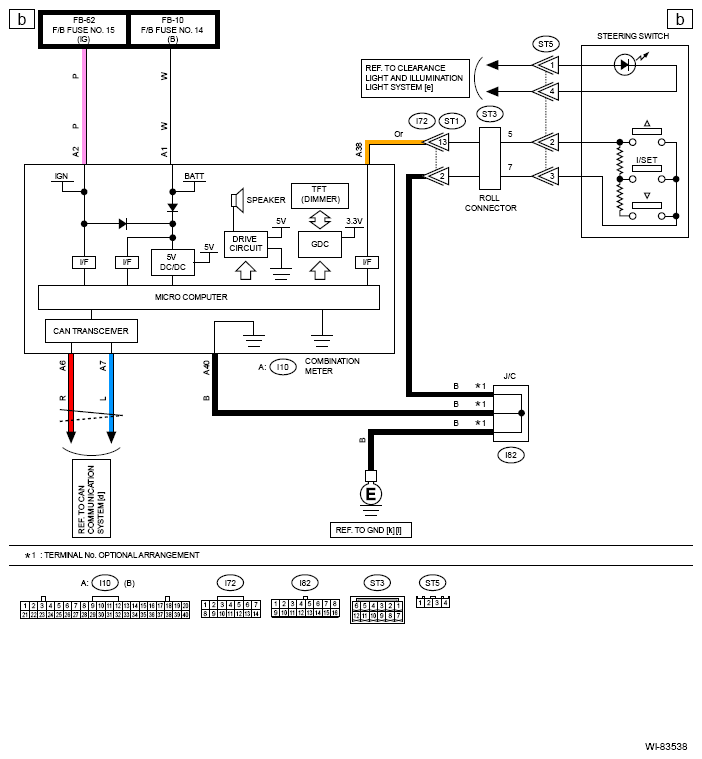

Reverse Automatic Braking: Wiring Diagram
WARNING:
This page is about a different variant/trim than selected.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
