Power Window System: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

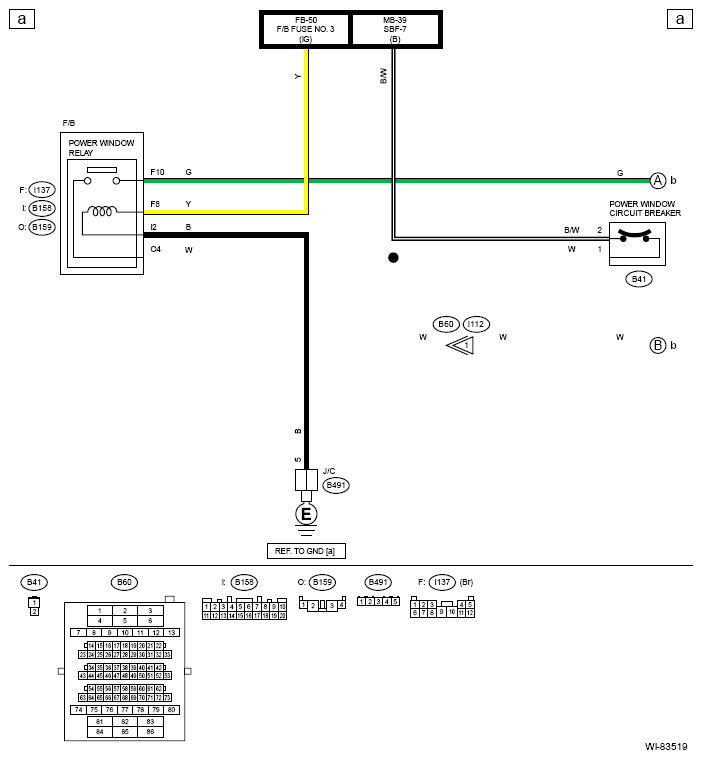

G13236624Courtesy of SUBARU OF AMERICA, INC.

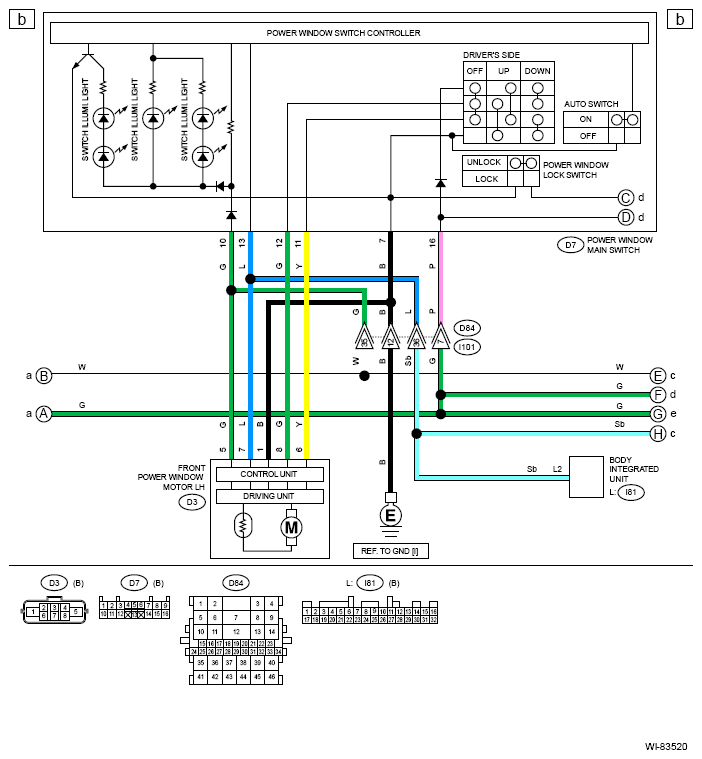

G13236625Courtesy of SUBARU OF AMERICA, INC.

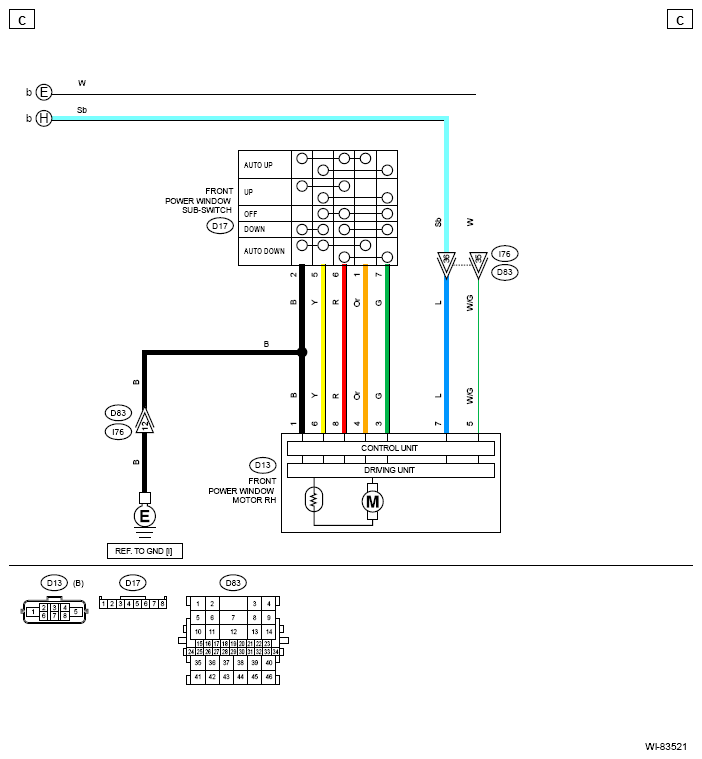

G13236626Courtesy of SUBARU OF AMERICA, INC.

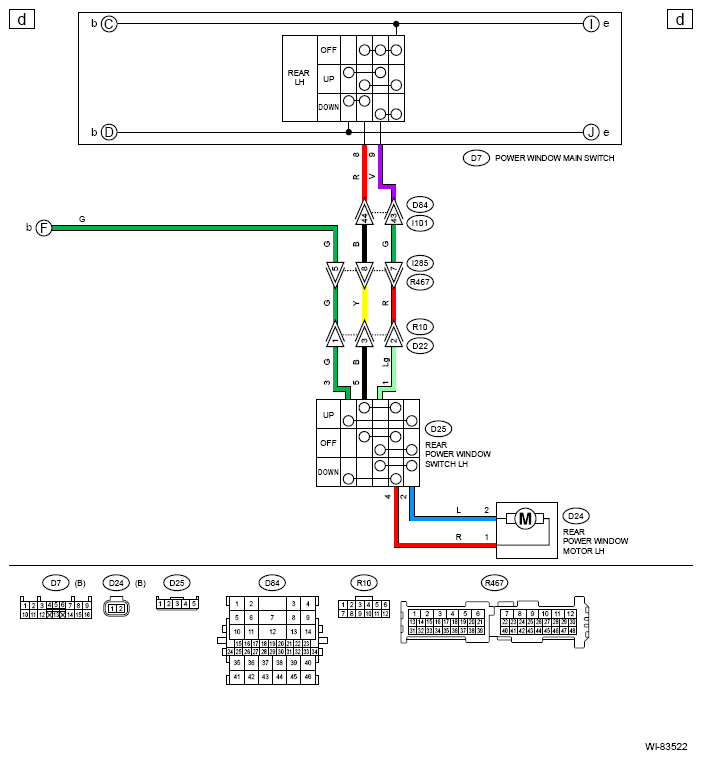

G13236627Courtesy of SUBARU OF AMERICA, INC.

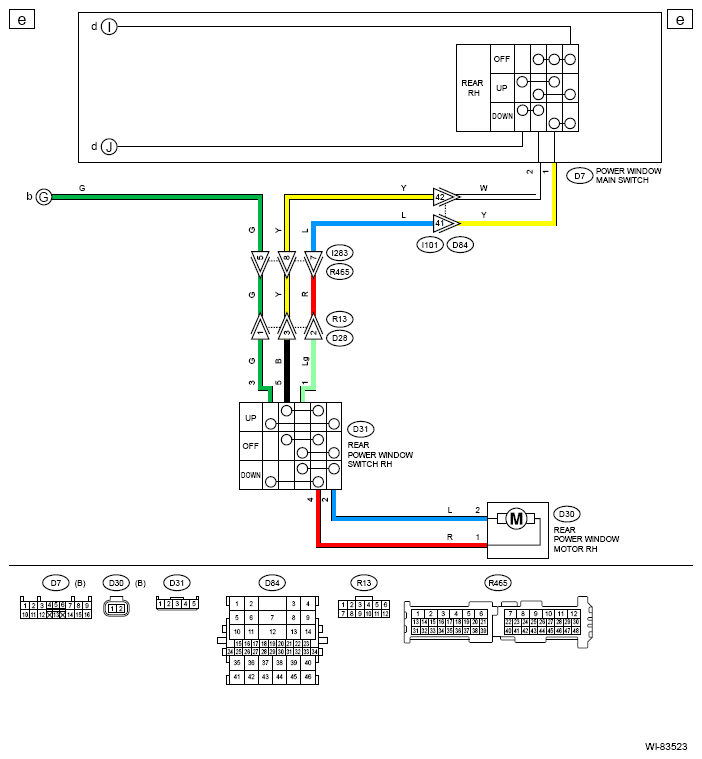

G13236628Courtesy of SUBARU OF AMERICA, INC.
