Headlight System and Daytime Running Light System: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

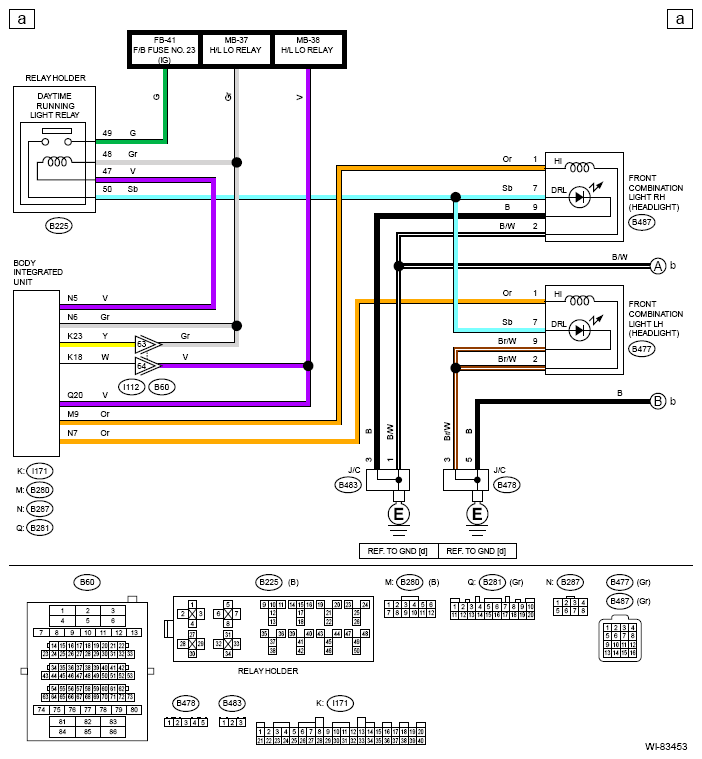

G13236558Courtesy of SUBARU OF AMERICA, INC.
G13236559Courtesy of SUBARU OF AMERICA, INC.

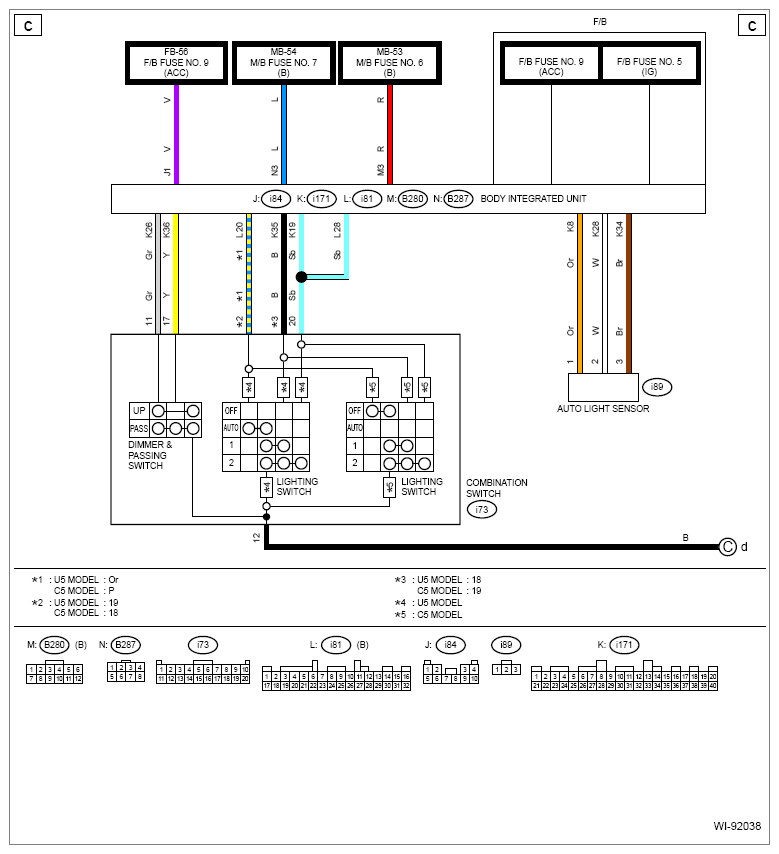

G13940734Courtesy of SUBARU OF AMERICA, INC.

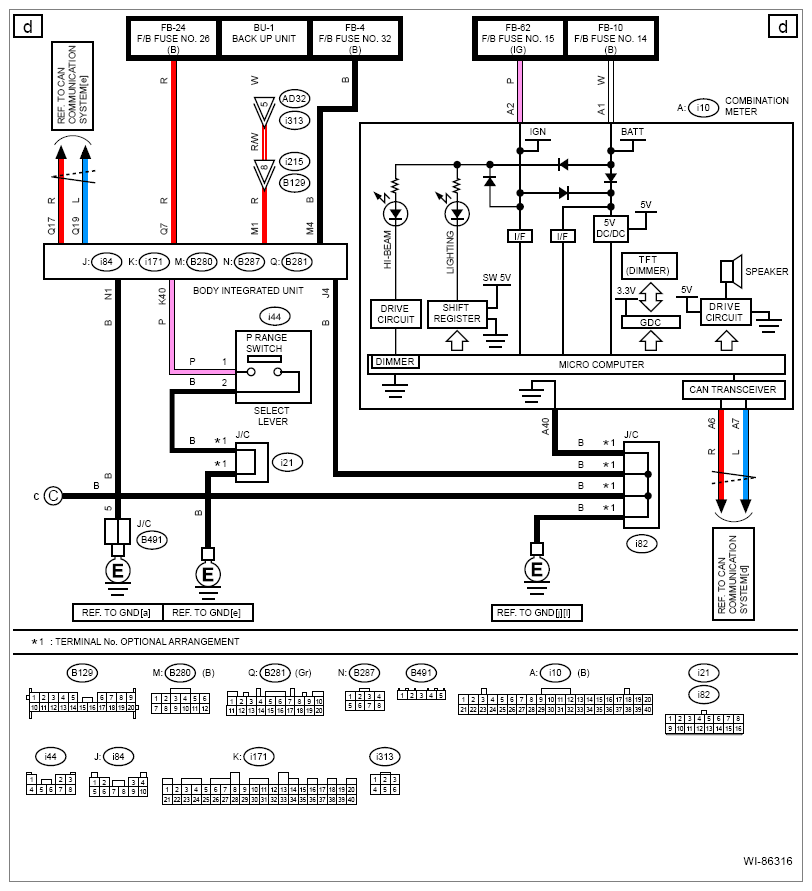

G13614413Courtesy of SUBARU OF AMERICA, INC.
