Blind Spot Detection/Rear Cross Traffic Alert: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

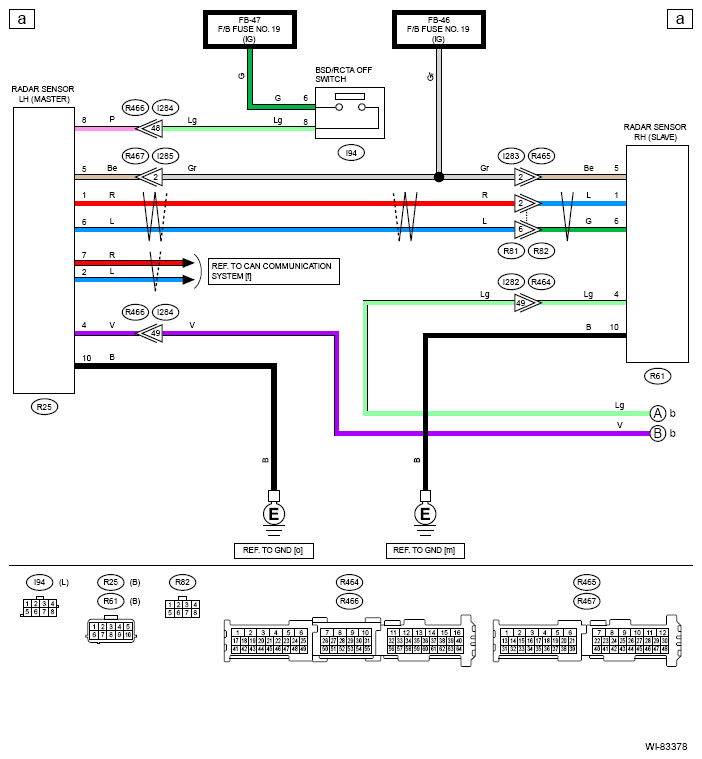

G13236485Courtesy of SUBARU OF AMERICA, INC.

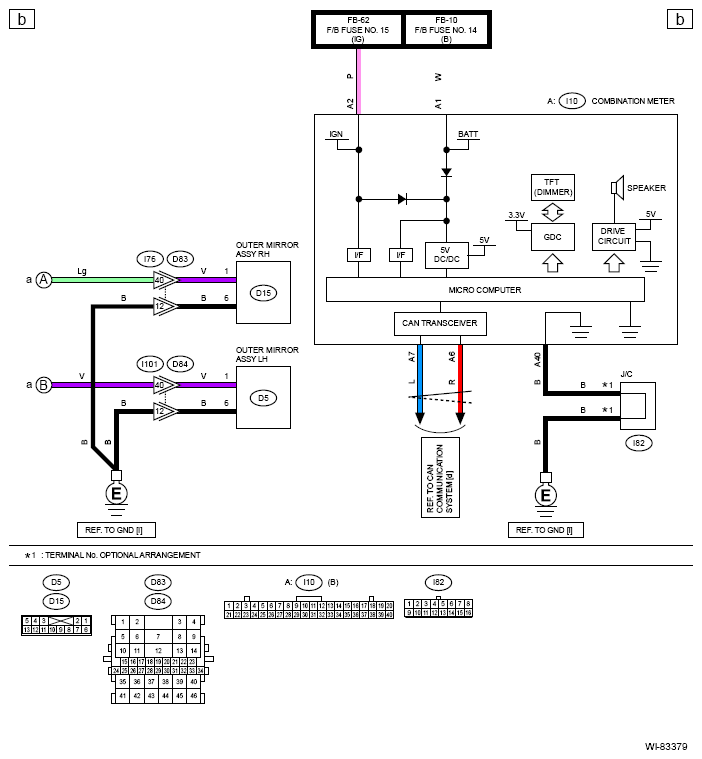

G13236486Courtesy of SUBARU OF AMERICA, INC.
