Reverse Automatic Braking: Wiring Diagram

WARNING: This page is about a different car, the 2021 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

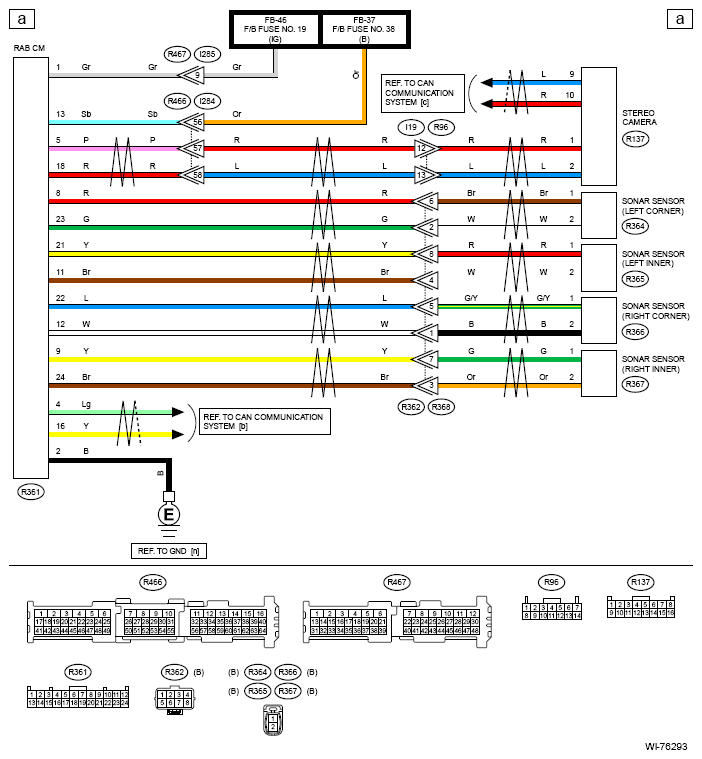

G13236050Courtesy of SUBARU OF AMERICA, INC.

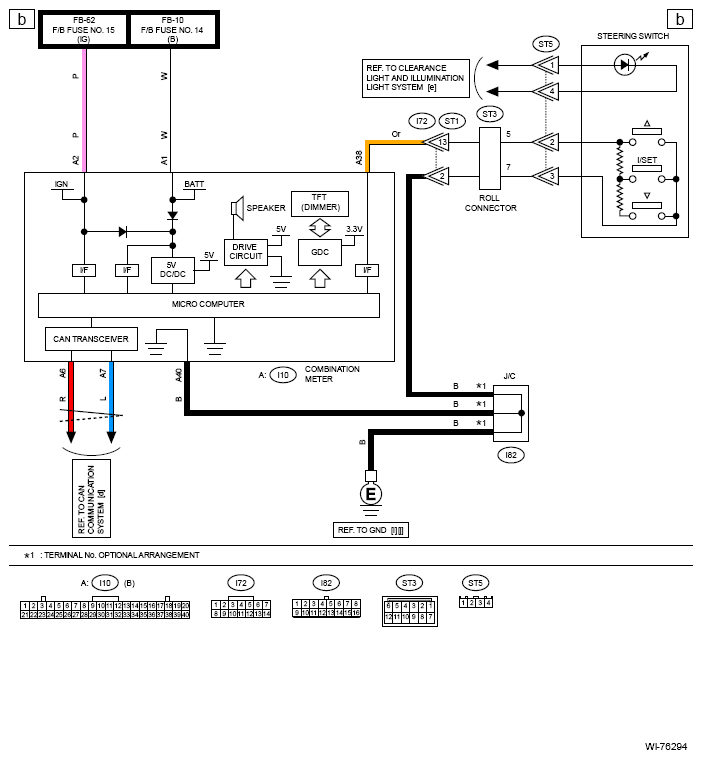

G13236051Courtesy of SUBARU OF AMERICA, INC.
