Headlight System and Daytime Running Light System: Wiring Diagram

WARNING: This page is about a different car, the 2021 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

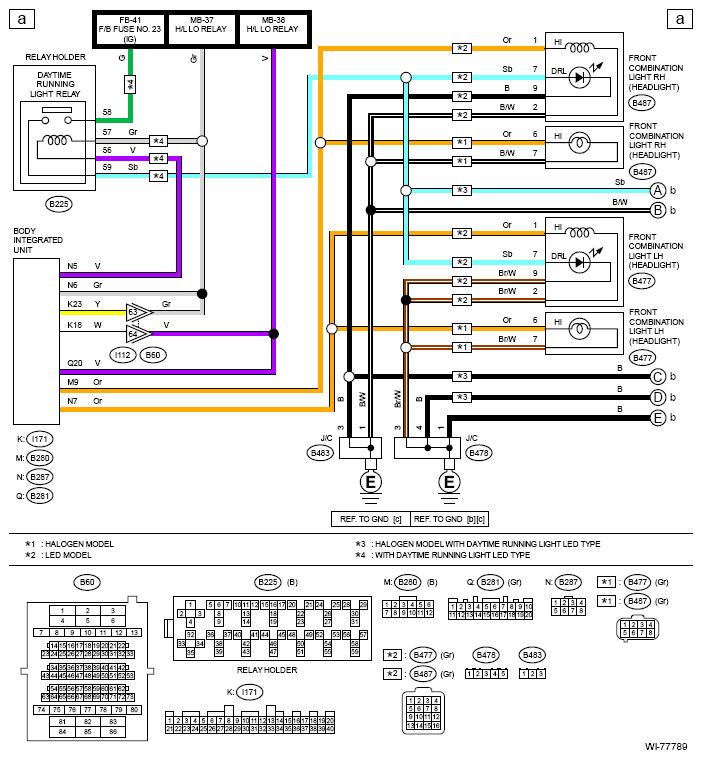

G13235973Courtesy of SUBARU OF AMERICA, INC.

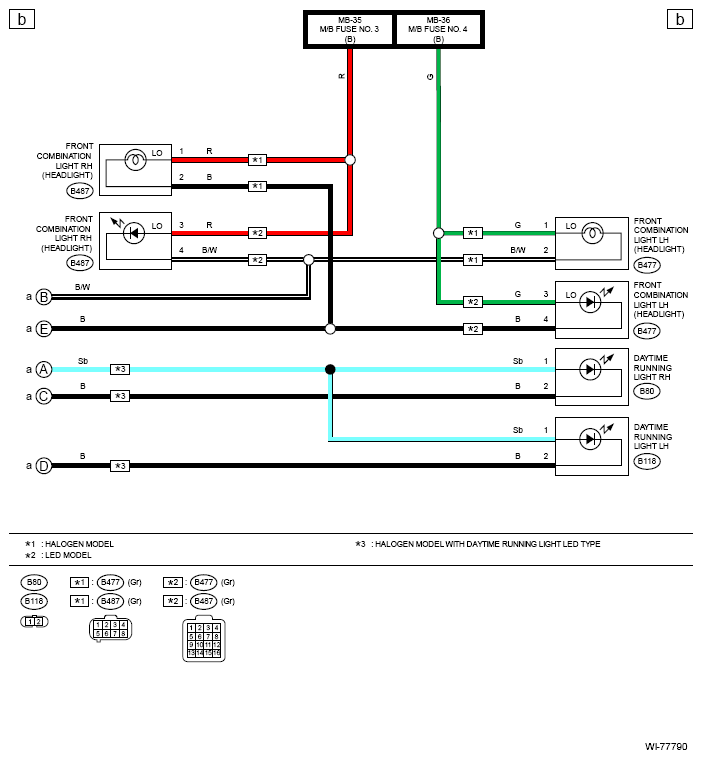

G13235974Courtesy of SUBARU OF AMERICA, INC.

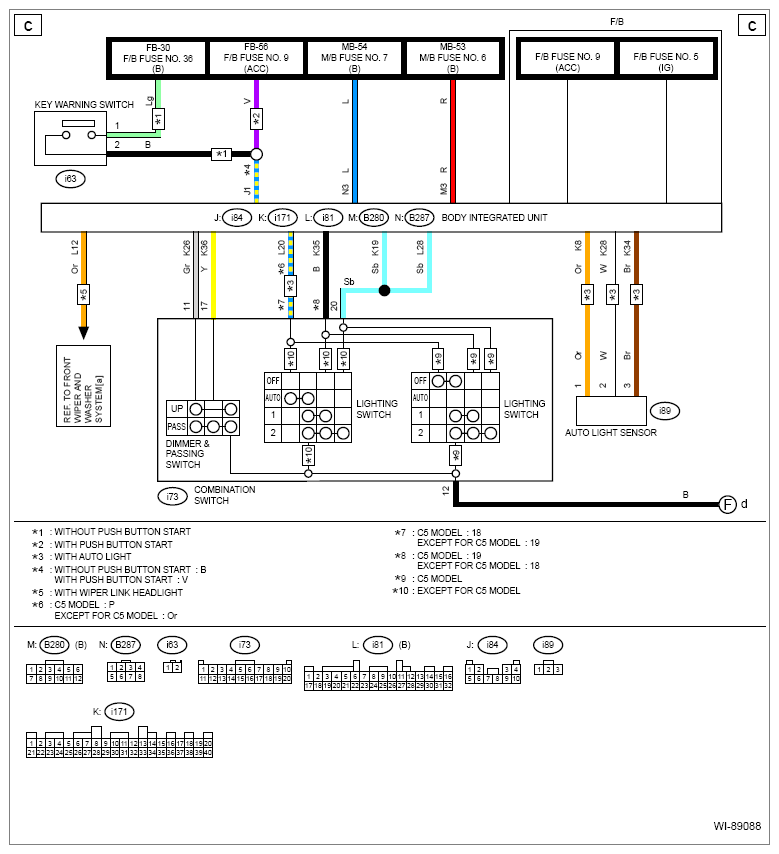

G13940064Courtesy of SUBARU OF AMERICA, INC.

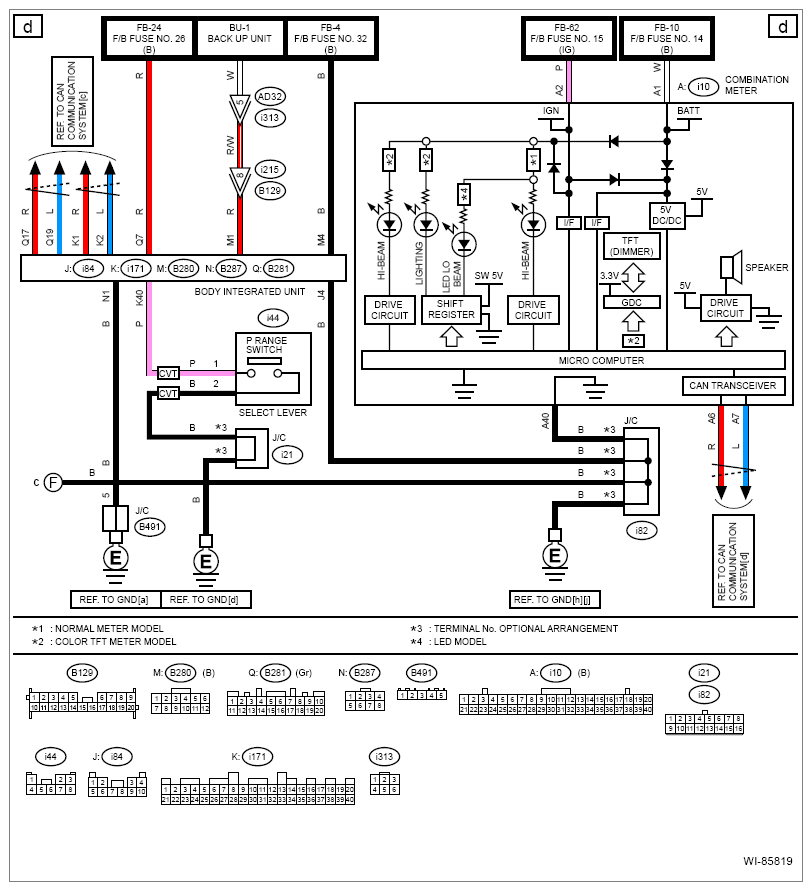

G13607761Courtesy of SUBARU OF AMERICA, INC.
