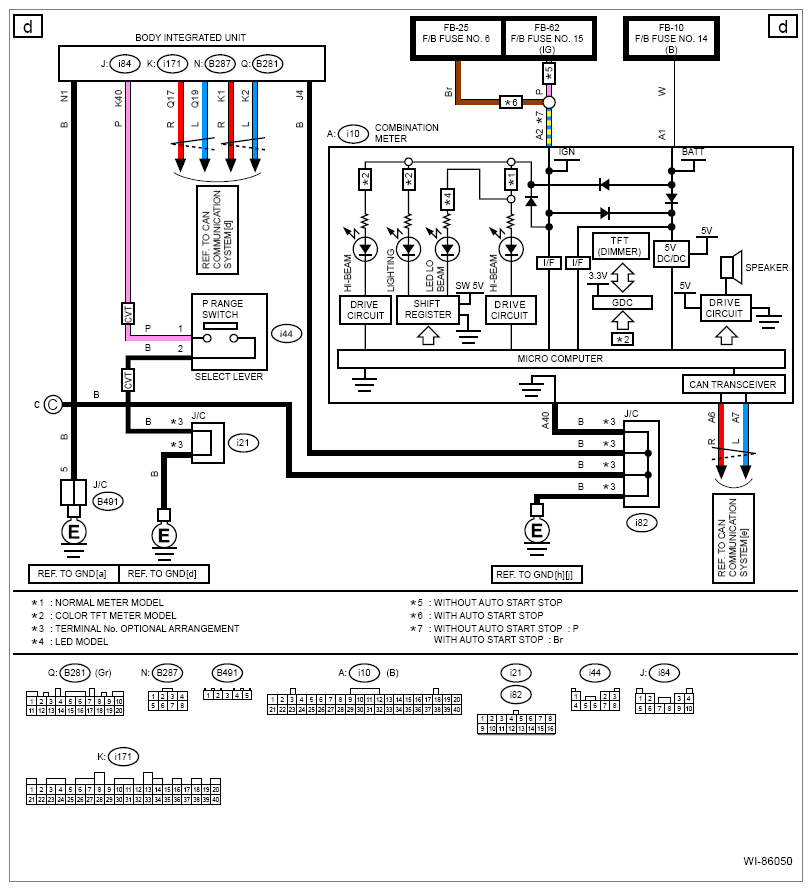

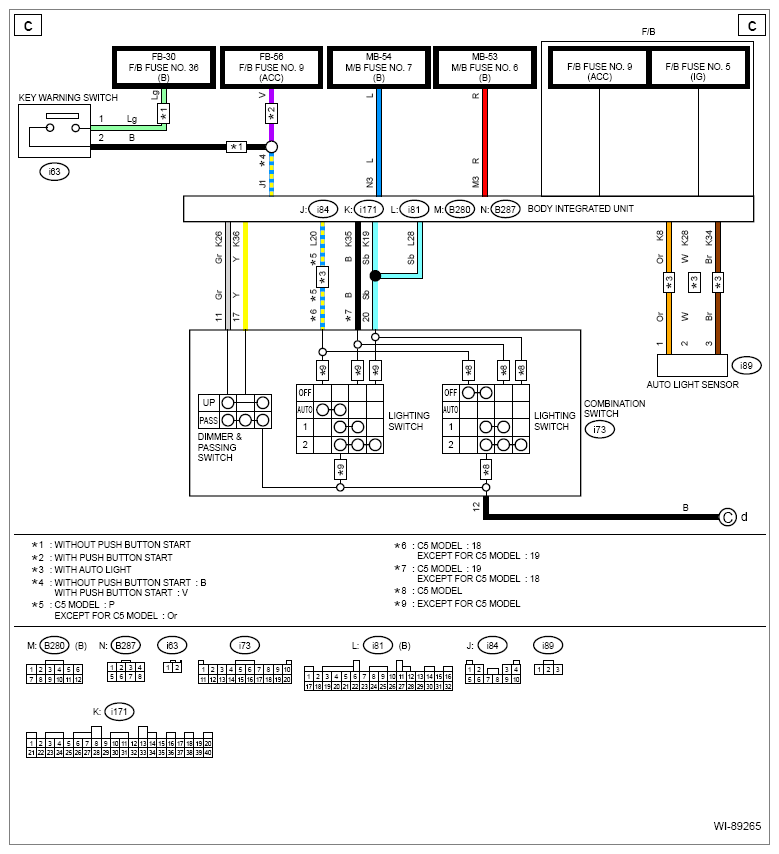

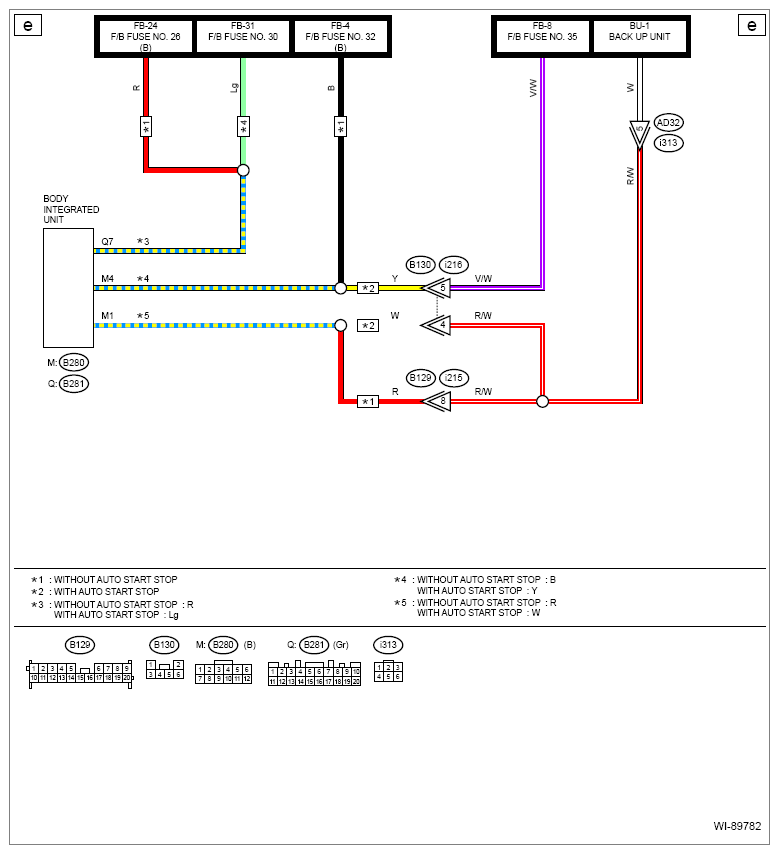

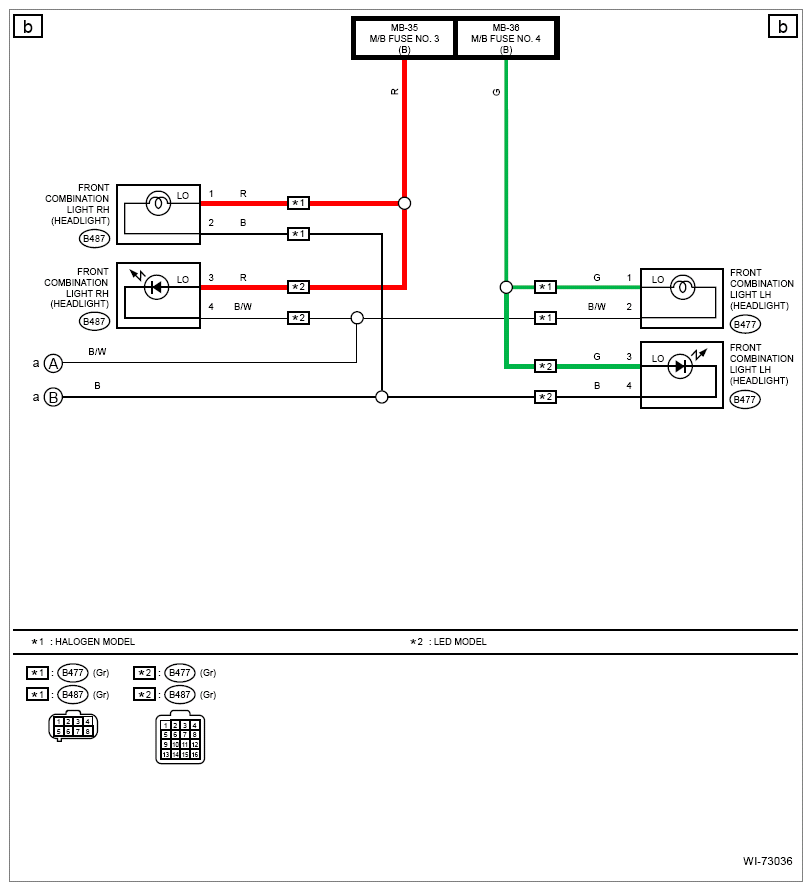

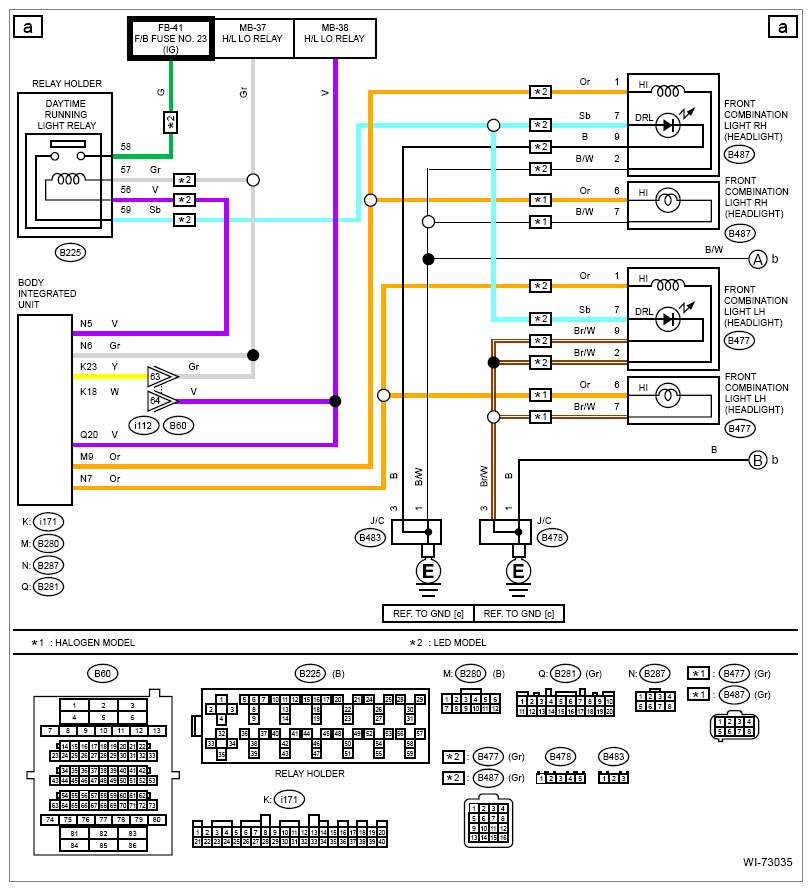

Headlight System and Daytime Running Light System: Wiring Diagram

Courtesy of SUBARU OF AMERICA, INC.

Courtesy of SUBARU OF AMERICA, INC.

Courtesy of SUBARU OF AMERICA, INC.

Courtesy of SUBARU OF AMERICA, INC.

Courtesy of SUBARU OF AMERICA, INC.
