Center Brake Pipes And Hoses

• Except for hybrid model

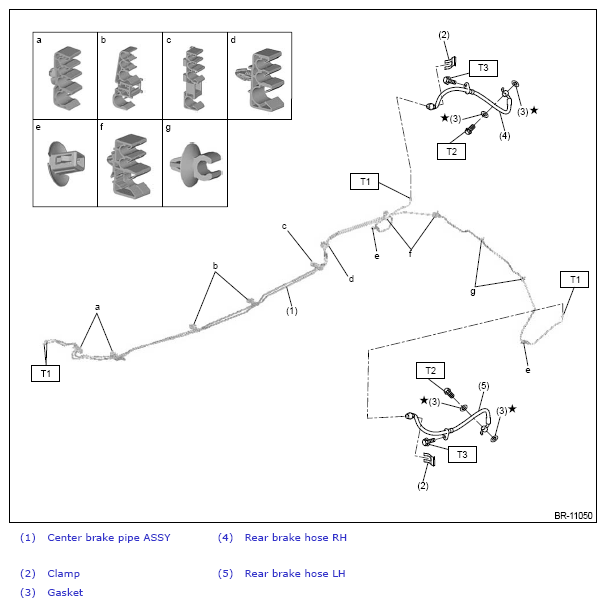

Fig 1: Center Brake Pipes And Hoses Components - Except For Hybrid Model

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 15 (1.5, 11.1)

T2: 26 (2.7, 19.2)

T3: 33 (3.4, 24.3)

• Hybrid model

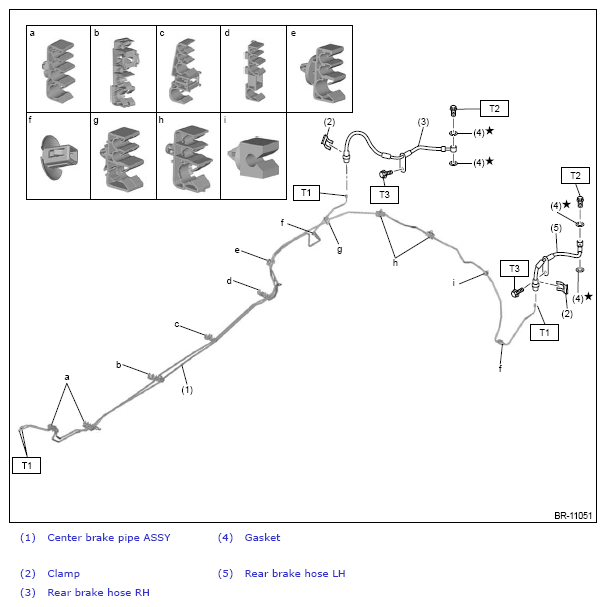

Fig 2: Center Brake Pipes And Hoses Components - Hybrid Model

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 15 (1.5, 11.1)

T2: 26 (2.7, 19.2)

T3: 33 (3.4, 24.3)
