Brake Vacuum Hose & Pipe

  1. Remove the air intake boot. Ref. to INTAKE (INDUCTION) (H4DO (EXCEPT FOR HEV))>AIR INTAKE BOOT>REMOVAL .
    NOTE: With the PCV hose connected, remove the air intake boot from the air cleaner case (rear) and throttle body.
  2. Remove the vacuum hose & pipe.

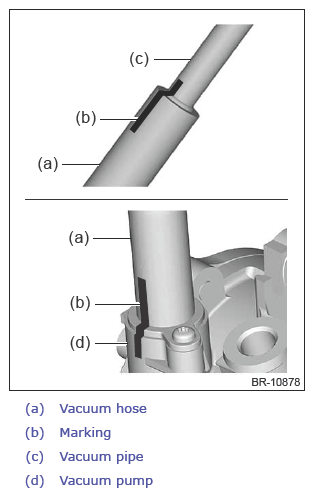

    NOTE: Perform marking of the vacuum hose on the vacuum pump side as shown in the figure below.
    G13935464Courtesy of SUBARU OF AMERICA, INC.

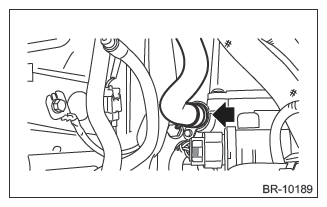

    1. Disconnect the vacuum hose from the vacuum pump.
      G11255226Courtesy of SUBARU OF AMERICA, INC.

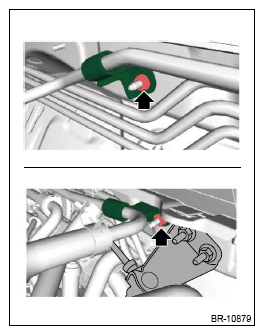

    2. Disconnect the pipe clamp from the bulkhead.
      G13232193Courtesy of SUBARU OF AMERICA, INC.
    3. Disconnect the vacuum hose & pipe from the intake manifold assembly and the vacuum booster assembly.

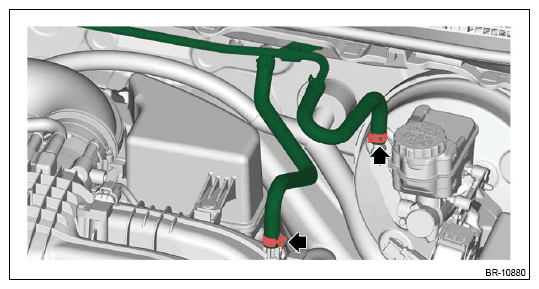

      • Impreza model
      G13232194Courtesy of SUBARU OF AMERICA, INC.

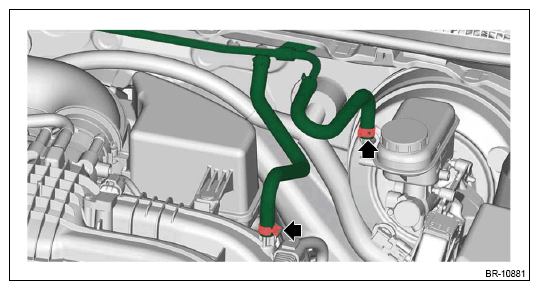

      • Crosstrek model
      G13232195Courtesy of SUBARU OF AMERICA, INC.

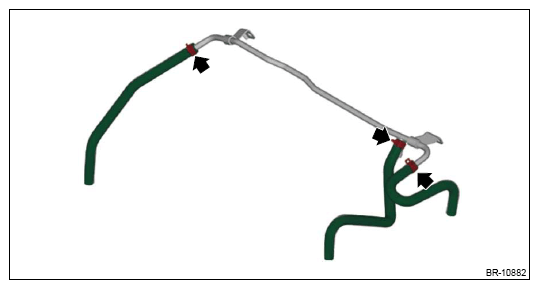

    4. Disconnect the vacuum hose from vacuum pipe.
G13232196Courtesy of SUBARU OF AMERICA, INC.
