Keyless Buzzer: Removal

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
    NOTE: For the hybrid model, disconnect the battery negative terminal.
  2. Lift up the vehicle.
  3. Remove the under cover - front. Ref. to EXTERIOR/INTERIOR TRIM>FRONT UNDER COVER> REMOVAL .
  4. Remove the screw and clips, and turn over the mud guard - front.
    G13605424Courtesy of SUBARU OF AMERICA, INC.

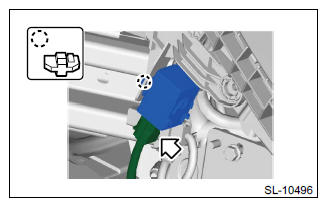

  5. Remove the keyless buzzer.
    1. Disconnect the connector.
    2. Remove the clip and detach the keyless buzzer.
    G11246368Courtesy of SUBARU OF AMERICA, INC.
